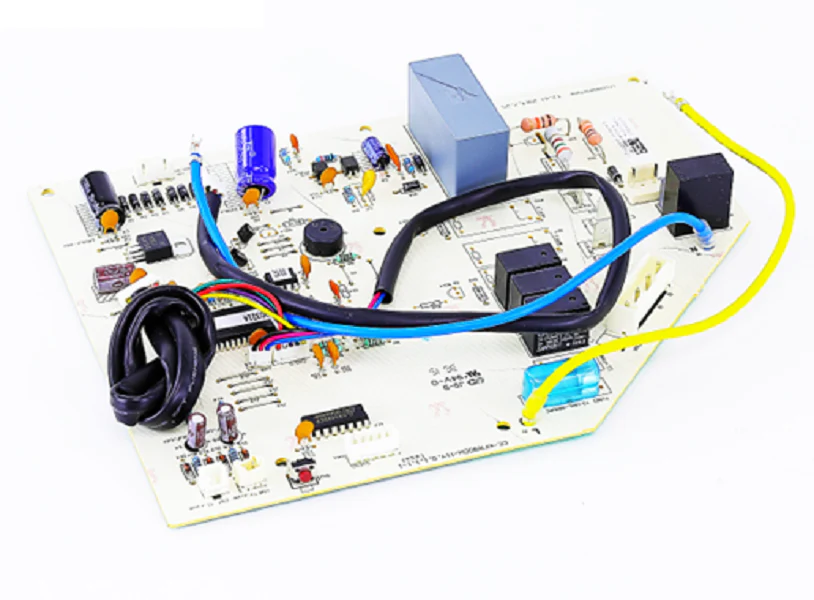

Heil Quaker ICP 17122000009094 Circuit Board
The Heil Quaker ICP 17122000009094 Circuit Board is a critical OEM replacement part designed for integration into standard-efficiency and high-efficiency Heil, Comfortmaker, and Tempstar gas furnaces. As a primary furnace control board, it manages the critical ignition sequence, inducer motor cycles, and blower timing to ensure safe and efficient heating performance. This integrated furnace control (IFC) features advanced onboard diagnostics, utilizing LED flash codes to assist technicians in identifying common system faults like short cycling, failed pressure switches, or open limit circuits. Built to withstand the thermal stress of high-cycle environments, this ICP furnace circuit board regulates the 120V blower output and 24V safety strings. Precise voltage regulation across the microprocessor ensures reliable communication with the thermostat and flame sensor, preventing nuisance lockouts. For field professionals, this board serves as a direct drop-in replacement, maintaining the specific timing parameters required by the original manufacturer to protect the heat exchanger from overheating during the post-purge cycle.
Key Benefits
- Direct OEM Compatibility: Engineered specifically for ICP-manufactured brands, ensuring seamless wiring harness alignment and mounting footprint.
- Integrated Diagnostics: Features an LED status indicator for rapid field furnace troubleshooting, reducing diagnostic time at the job site.
- Reliable Logic Control: Manages the complex timing of the hot surface ignitor and blower delays to optimize fuel efficiency and component longevity.
- Robust Construction: Designed with high-duty cycle relays to handle inductive loads from PSC and X13 blower motors without premature contact pitting.
Common Questions
How do I identify a faulty 17122000009094 control board?
Common indicators include the blower motor running continuously while the thermostat is off, the furnace failing to initiate the ignition sequence despite receiving a W1 call, or the presence of burnt solder joints on the back of the PCB. Always verify the 3-amp or 5-amp automotive fuse is intact before replacing the board.
Can this board replace older Heil Quaker ignition modules?
This board is an integrated control that handles both ignition and fan timing. If replacing an older system with separate modules, rewiring and a transition kit may be necessary. Always match the 17122000009094 part number with the service manual for the specific unit model.
What do the LED flash codes signify?
The LED provides a visual representative of the system's current state. Rapid flashing typically indicates a reversed polarity, while specific rhythmic pulses correspond to pressure switch failures, limit trips, or flame sensing issues. Refer to the unit's cabinet door diagram for the specific code definitions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
