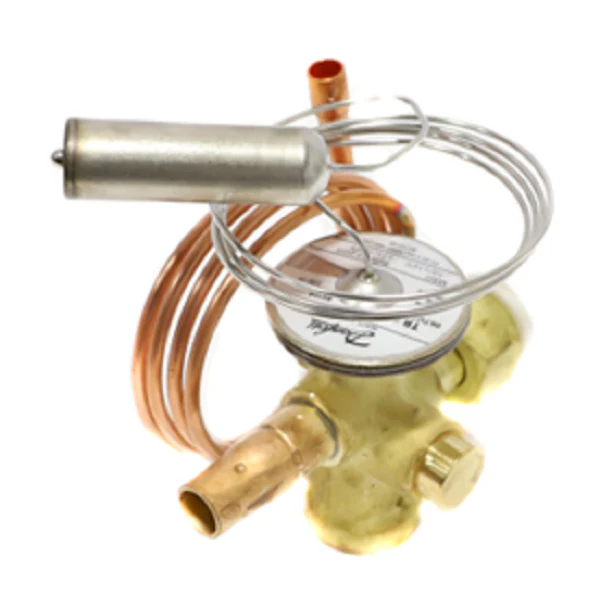

Heil Quaker ICP 15500213000102 TXV Valve
The Heil Quaker ICP 15500213000102 TXV Valve is an OEM-grade 3-ton thermostatic expansion valve specifically calibrated for high-pressure R410A refrigerant systems. For technicians troubleshooting evaporator coil freeze-ups or poor superheat control, this mechanical expansion device ensures precise metering to the evaporator, maintaining technical efficiency during variable load conditions. Engineered for residential split systems and light commercial air handlers, the 15500213000102 facilitates proper refrigerant state change, protecting the compressor from liquid slugging while maximizing heat transfer rates.
Technical Benefits:
- Precise Superheat Regulation: Mechanically maintains the optimal temperature differential across the evaporator coil to prevent floodback.
- R410A Internal Calibration: Factory-set for the pressure-temperature characteristics of R410A, ensuring stable operation under high-side pressure.
- 3-Ton Nominal Capacity: Built to handle the mass flow requirements of 36,000 BTU cooling systems with consistent performance.
- OEM Fitment: Designed as a direct drop-in replacement for Heil, Quaker, and other ICP-branded air conditioning and heat pump units.
Common Questions:
Can this TXV be used with R22 systems?
No, the 15500213000102 is internally balanced and orifice-sized specifically for the thermodynamic properties of R410A refrigerant. Using it in an R22 circuit will result in improper metering and potential system failure.
How do I verify if this valve is failing?
Technicians should check for hunting (fluctuating suction pressure), excessive superheat (underfeeding), or low superheat (overfeeding). Ensure the sensing bulb is securely strapped to the suction line at the 4 or 8 o’clock position and properly insulated before concluding the thermostatic expansion valve is defective.
Is the sensing bulb included?
Yes, this ICP txv valve assembly includes the integrated power element and capillary tube for sensing suction line temperature to modulate flow.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
