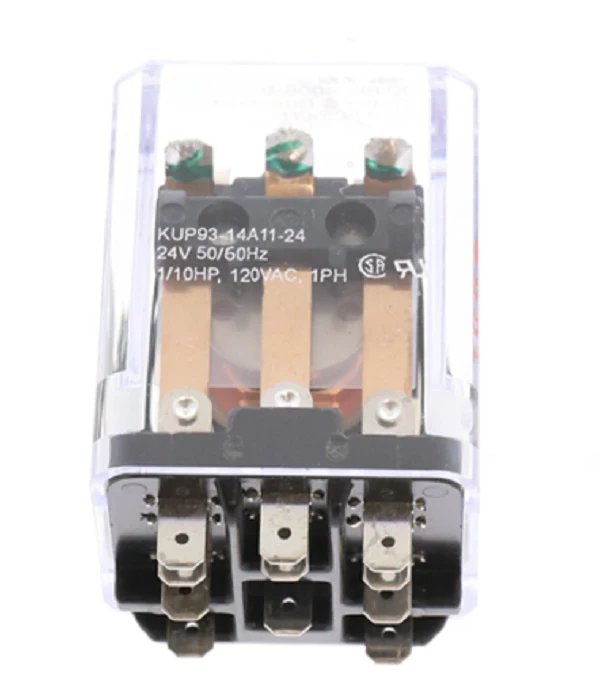

Heil Quaker ICP 1192862 Relay
The Heil Quaker ICP 1192862 Relay is a heavy-duty 24V 3PDT relay engineered for rigorous switching demands in residential and commercial HVACR systems. As a triple-pole, double-throw electromagnetic switch, this OEM component allows a low-voltage 24VAC control signal to manage three independent high-voltage circuits simultaneously. This configuration is critical for coordinating multiple system loads, such as blower motors, compressors, and auxiliary heat kits, ensuring synchronized operation across 50/60Hz cycles. Built to replace legacy part numbers including 1171433, it provides high-amperage contact reliability and reduced coil chatter in demanding environments. This relay is compatible with a broad range of International Comfort Products equipment, including Heil, Tempstar, Comfortmaker, and Arcoaire furnaces and air handlers. For technicians performing field service, this 3PDT switching relay offers a drop-in HVAC replacement part solution that maintains the electrical integrity and timing sequences of the original equipment design.
Key Benefits- Multi-Circuit Control: The 3PDT configuration allows for the simultaneous switching of three separate poles, providing versatile control for complex system architectures.
- Universal Compatibility: Designed for seamless integration with ICP brands such as Tempstar, Heil, and Comfortmaker, eliminating the need for field modifications.
- Broad Frequency Support: Operates efficiently at both 50Hz and 60Hz, making it suitable for a wide variety of power grid specifications.
- Enhanced Contact Reliability: Features high-grade contact materials to minimize arcing and ensure a long-lasting electrical connection under peak loads.
What does 3PDT mean for my wiring?
3PDT stands for Triple Pole Double Throw. In this relay, you have three separate sets of contacts that move at the same time, allowing you to switch three different circuits between two different positions (normally open or normally closed).
Can I use this relay to replace a 2PDT relay?
While a 3PDT relay has more switching capability than a 2PDT, it is always best to match the exact pole count and footprint of the original 1192862 part to ensure proper terminal alignment and cabinet mounting.
Is the coil voltage strictly limited to 24V?
Yes, this relay is designed for a 24VAC control circuit. Applying higher voltage to the coil will result in immediate component failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $65.97
-65%$65.97
$23.09Heil Quaker ICP 1192862 Relay
