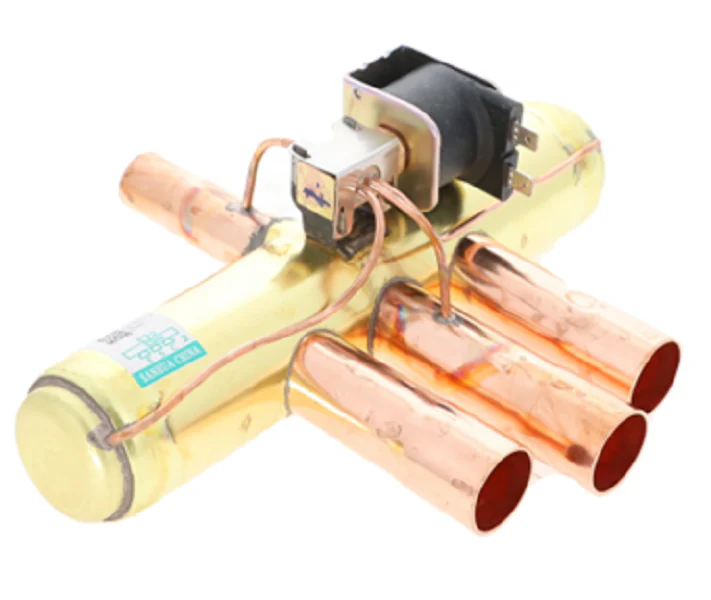

Heil Quaker ICP 1192318 Reversing Valve
The Heil Quaker ICP 1192318 Reversing Valve is a critical 4-way pilot-operated component designed for heat pump applications requiring precise refrigerant flow reversal. Engineered as a direct replacement for EF17BZ281, this valve ensures seamless transitions between heating and cooling cycles. It features a 24V solenoid coil (50/60 Hz) and utilizes a slide-block mechanism driven by pressure differentials. This OEM HVAC reversing valve is built to withstand high-pressure environments, making it a reliable choice for International Comfort Products (ICP), Heil, Tempstar, and Comfortmaker units.
When performing a heat pump reversing valve replacement, technicians should note the 5/8" x 7/8" ODF sweat connections. To avoid internal damage during installation, always wrap the valve body in a wet rag to dissipate heat and remove the solenoid coil before brazing. This 1192318 reversing valve with coil is a standard 24 volt HVAC valve choice for restoring the refrigerant flow control necessary for year-round climate regulation. It is a drop-in solution for mid-sized residential and light commercial heat pumps where EF17BZ281 compatibility is specified.
Key Benefits:- Direct OEM Replacement: Guaranteed fit for EF17BZ281, reducing field modification time for ICP and Heil Quaker systems.
- Integrated 24V Coil: Comes equipped with a matched 24V AC solenoid coil for immediate out-of-the-box electrical integration.
- Industrial Build Quality: High-grade brass body and precision-machined internal slides prevent sticking and minimize bypass leakage.
- Optimized Flow Dynamics: Maintains system efficiency by ensuring a full shift between cycles, preventing high-to-low side pressure bleed.
- Is this compatible with R-410A systems? Yes, this valve is rated for the higher operating pressures associated with modern R-410A heat pump systems.
- How can I tell if the coil or the valve body is failing? If the coil is energized (24V present) but the valve fails to shift, the issue is likely mechanical sticking or a lack of pressure differential. If no magnetic field is detected at the coil, only the solenoid may need replacing.
- Does this valve come with the solenoid coil included? Yes, the 1192318 includes the 24V coil as a complete assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
