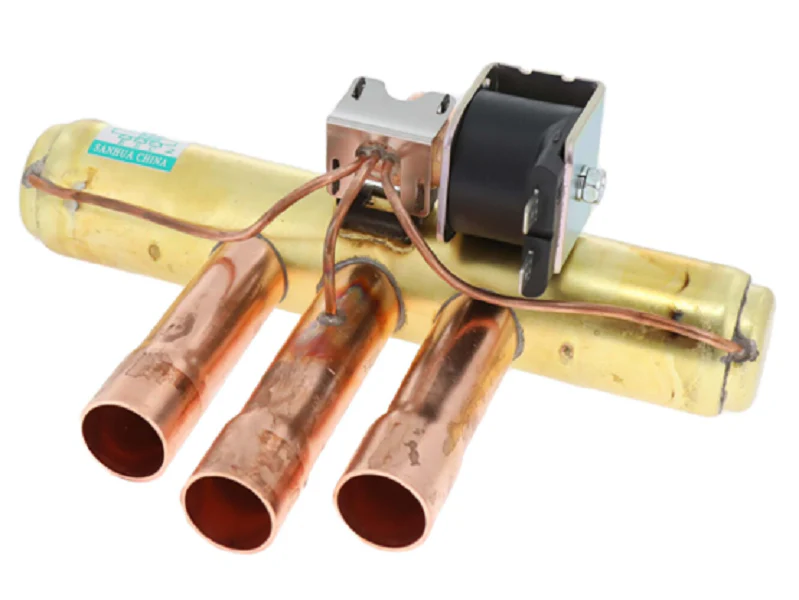

Heil Quaker ICP 1192317 Reversing Valve
The Heil Quaker ICP 1192317 Reversing Valve is a critical 4-way flow control component designed for heat pump systems to facilitate the transition between heating and cooling modes. This OEM assembly includes a factory-installed 24V solenoid coil, ensuring rapid and stable pilot operation for high-efficiency refrigerant redirection. As a direct replacement for legacy part numbers 1172617, R47804-001, and Sanhua SHF-20D-46-02, this valve provides a precise fit for a variety of ICP International Comfort Products units, including those under the Tempstar, Comfortmaker, and Arcoaire brand lines. Constructed with a heavy-duty brass body, it offers superior corrosion resistance and thermal stability, maintaining a Maximum Operating Pressure (MOP) of 4.5 MPa (45 bar). Featuring 1/2-inch ODF tube and 3/4-inch ESC connections, this 4-way reversing valve is compatible with modern high-pressure refrigerants like R-410A as well as R-22 and R-407C, making it a versatile solution for professional HVAC compressor service and repair.
Key Benefits:
- Broad Compatibility: Serves as the direct OEM replacement reversing valve for multiple legacy ICP part numbers and Sanhua SHF series valves.
- Integrated Solenoid: Includes a matched 24V coil for immediate installation, reducing labor time and ensuring electrical compatibility with standard low-voltage control circuits.
- Durable Construction: The forge brass body and precision-machined internal slide mechanism minimize the risk of mechanical sticking in heat pump cycles.
- Performance Rated: Engineered to handle high-pressure differentials (OPD) and a medium temperature range from -30°C to +120°C.
Common Questions:
How do I diagnose a stuck reversing valve?
Technicians should first verify the 24V coil resistance (typically 50-80 ohms) and check for a magnetic field when energized. If the solenoid clicks but the system fails to switch modes, check the temperature differential across the suction and discharge lines to confirm a mechanical slide failure.
Can I install this valve in any orientation?
For optimal performance, the valve should be installed with the solenoid coil facing upwards or with the main body axis in a horizontal alignment. Always ensure proper refrigerant flow direction per the installation schematic.
Is this valve compatible with R-410A systems?
Yes, the ICP 1192317 is rated for the higher pressures associated with R-410A, as well as common HCFC and HFC refrigerants including R-22 and R-407C.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $112.69
-65%$112.69
$39.44Heil Quaker ICP 1192317 Reversing Valve
The Heil Quaker ICP 1192317 Reversing Valve is a critical 4-way flow control component designed for heat pump systems to facilitate the transition between heating and cooling modes. This OEM assembly includes a factory-installed 24V solenoid coil, ensuring rapid and stable pilot operation for high-efficiency refrigerant redirection. As a direct replacement for legacy part numbers 1172617, R47804-001, and Sanhua SHF-20D-46-02, this valve provides a precise fit for a variety of ICP International Comfort Products units, including those under the Tempstar, Comfortmaker, and Arcoaire brand lines. Constructed with a heavy-duty brass body, it offers superior corrosion resistance and thermal stability, maintaining a Maximum Operating Pressure (MOP) of 4.5 MPa (45 bar). Featuring 1/2-inch ODF tube and 3/4-inch ESC connections, this 4-way reversing valve is compatible with modern high-pressure refrigerants like R-410A as well as R-22 and R-407C, making it a versatile solution for professional HVAC compressor service and repair.
Key Benefits:
- Broad Compatibility: Serves as the direct OEM replacement reversing valve for multiple legacy ICP part numbers and Sanhua SHF series valves.
- Integrated Solenoid: Includes a matched 24V coil for immediate installation, reducing labor time and ensuring electrical compatibility with standard low-voltage control circuits.
- Durable Construction: The forge brass body and precision-machined internal slide mechanism minimize the risk of mechanical sticking in heat pump cycles.
- Performance Rated: Engineered to handle high-pressure differentials (OPD) and a medium temperature range from -30°C to +120°C.
Common Questions:
How do I diagnose a stuck reversing valve?
Technicians should first verify the 24V coil resistance (typically 50-80 ohms) and check for a magnetic field when energized. If the solenoid clicks but the system fails to switch modes, check the temperature differential across the suction and discharge lines to confirm a mechanical slide failure.
Can I install this valve in any orientation?
For optimal performance, the valve should be installed with the solenoid coil facing upwards or with the main body axis in a horizontal alignment. Always ensure proper refrigerant flow direction per the installation schematic.
Is this valve compatible with R-410A systems?
Yes, the ICP 1192317 is rated for the higher pressures associated with R-410A, as well as common HCFC and HFC refrigerants including R-22 and R-407C.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
