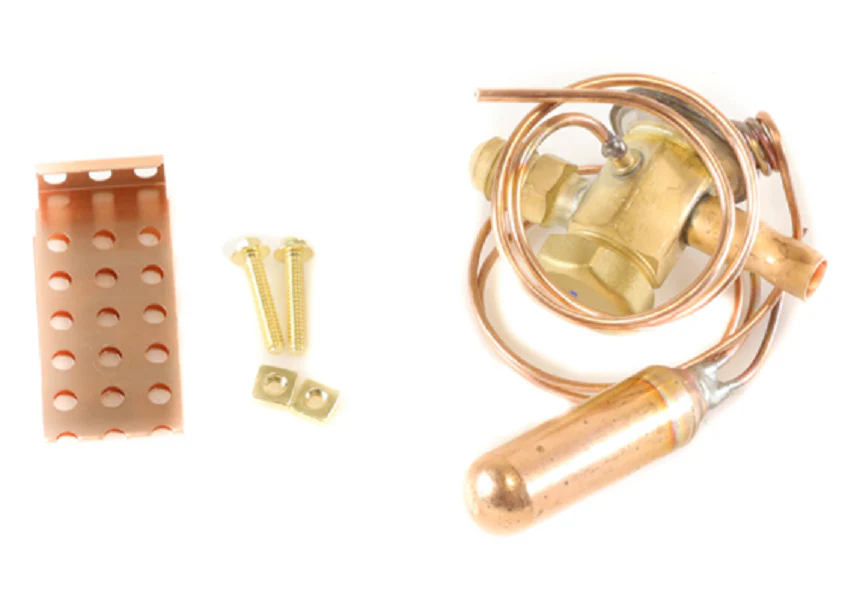

Heil Quaker ICP 1192288 TXV Valve
The Heil Quaker ICP 1192288 TXV Valve is a critical R410A refrigerant metering component designed for high-efficiency evaporators. As an OEM thermostatic expansion valve, this part identifies the precise load requirements of the coil to maintain target superheat, protecting the compressor from liquid slugging while maximizing heat transfer. Built by Sporlan under the part number HXCE-3-KX, it features a 3/8-inch inlet and is engineered for seamless integration with International Comfort Products brands including Heil, Tempstar, and Comfortmaker.
For the veteran technician, this TXV kit includes the necessary bulb mount straps and hardware to ensure a secure thermal contact on the suction line. Whether you are addressing a starving evaporator or a hunting expansion valve, the 1192288 provides the reliable modulation needed to stabilize system pressures. Using genuine ICP parts ensures that the internal orifice and spring tension match the factory-specified subcooling requirements of the outdoor unit, maintaining the original AHRI efficiency ratings of the equipment.
Key Benefits- OEM Compatibility: Precision-matched for ICP, Heil, and Tempstar R410A HVAC systems.
- Internal Balance: Maintains optimal evaporator superheat to prevent compressor damage and flooding.
- Hard-Shutoff Design: Engineered to hold refrigerant pressures during the off-cycle for better startup performance.
- Durable Construction: High-grade bi-flow capable assembly designed for long-term reliability in the field.
How do I confirm if the TXV is restricted?
Technicians should check for high superheat and low suction pressure combined with normal or high subcooling. If the sensing bulb is warmed and no pressure change occurs at the manifold, the thermal expansion valve may be stuck or the power element has lost its charge.
Where should the sensing bulb be positioned?
For standard suction lines, the bulb should be mounted at the 12 o'clock position (on lines 7/8" and smaller) or the 4 or 8 o'clock position (on larger lines) to ensure it measures vapor temperature rather than oil or liquid at the bottom of the pipe.
Does this valve require an external equalizer?
Yes, this ICP 1192288 utilizes an external equalizer to compensate for pressure drops across the distributor and evaporator coil, ensuring accurate refrigerant metering.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
