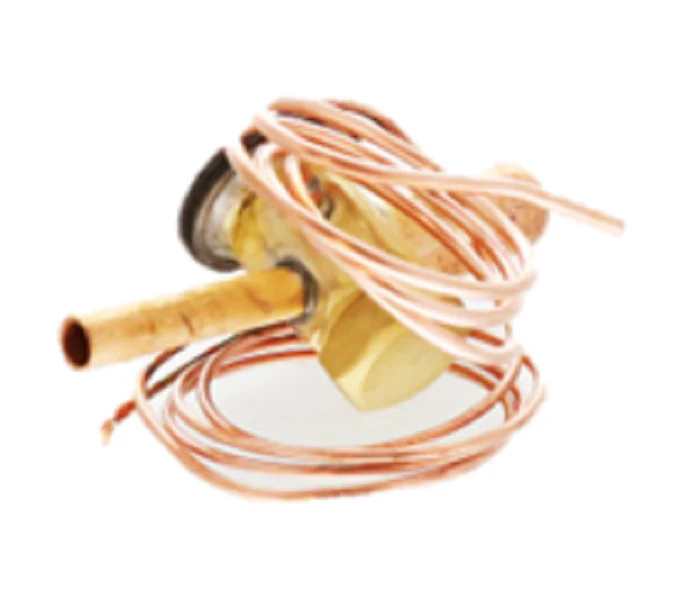

Heil Quaker ICP 1192284 TXV
When you're dealing with a 2 ton TXV replacement on a Heil Quaker ICP system, precision in refrigerant metering is the difference between a clean call and a callback. The Heil Quaker ICP 1192284 TXV is a thermostatic expansion valve engineered specifically for R-410A refrigerant applications, ensuring the evaporator maintains proper superheat across varying thermal loads. This OEM HVAC replacement part (manufactured by Sporlan, MPN EA36YP286) features 3/8" and 1/4" connections, making it a direct-fit solution for many Heil, Tempstar, and Comfortmaker units. By utilizing a thermal expansion valve instead of a fixed orifice, you verify that the system operates at peak efficiency, protecting the compressor from liquid slugging while maximizing HVAC cooling performance. Whether you are performing a TXV valve installation or troubleshooting refrigerant flow control issues, this genuine ICP 1192284 kit provides the reliability required for professional-grade repairs.
Key Benefits- Optimized Superheat Control: Automatically adjusts refrigerant flow to maintain precise evaporator conditions, preventing compressor damage.
- R-410A Compatibility: Designed specifically for high-pressure R-410A systems, ensuring long-term seat and diaphragm durability.
- Universal ICP Fit: Directly replaces older part numbers like 1177736, reducing field modification time for 2 ton air handlers and coils.
- Complete Replacement Kit: Includes the valve, mounting clamp, and hardware to ensure a secure and thermally conductive bulb placement.
Is the ICP 1192284 a hard-shutoff or non-bleed valve?
This model is typically a hard-shutoff thermostatic expansion valve, meaning it requires a start capacitor on the compressor if the system doesn't already have one to overcome the pressure differential upon startup.
What are the symptoms of a failing 2 ton TXV?
Technicians usually see high superheat at the evaporator, low suction pressure, and potentially a frosted distributor tubeset or evaporator inlet, even with a full refrigerant charge.
Does this kit include the sensing bulb insulation?
While the kit provides the mounting hardware, always ensure the bulb is mounted at the 2 o'clock or 10 o'clock position on the suction line and fully insulated to prevent false ambient air readings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $116.29
-65%$116.29
$40.70Heil Quaker ICP 1192284 TXV
When you're dealing with a 2 ton TXV replacement on a Heil Quaker ICP system, precision in refrigerant metering is the difference between a clean call and a callback. The Heil Quaker ICP 1192284 TXV is a thermostatic expansion valve engineered specifically for R-410A refrigerant applications, ensuring the evaporator maintains proper superheat across varying thermal loads. This OEM HVAC replacement part (manufactured by Sporlan, MPN EA36YP286) features 3/8" and 1/4" connections, making it a direct-fit solution for many Heil, Tempstar, and Comfortmaker units. By utilizing a thermal expansion valve instead of a fixed orifice, you verify that the system operates at peak efficiency, protecting the compressor from liquid slugging while maximizing HVAC cooling performance. Whether you are performing a TXV valve installation or troubleshooting refrigerant flow control issues, this genuine ICP 1192284 kit provides the reliability required for professional-grade repairs.
Key Benefits- Optimized Superheat Control: Automatically adjusts refrigerant flow to maintain precise evaporator conditions, preventing compressor damage.
- R-410A Compatibility: Designed specifically for high-pressure R-410A systems, ensuring long-term seat and diaphragm durability.
- Universal ICP Fit: Directly replaces older part numbers like 1177736, reducing field modification time for 2 ton air handlers and coils.
- Complete Replacement Kit: Includes the valve, mounting clamp, and hardware to ensure a secure and thermally conductive bulb placement.
Is the ICP 1192284 a hard-shutoff or non-bleed valve?
This model is typically a hard-shutoff thermostatic expansion valve, meaning it requires a start capacitor on the compressor if the system doesn't already have one to overcome the pressure differential upon startup.
What are the symptoms of a failing 2 ton TXV?
Technicians usually see high superheat at the evaporator, low suction pressure, and potentially a frosted distributor tubeset or evaporator inlet, even with a full refrigerant charge.
Does this kit include the sensing bulb insulation?
While the kit provides the mounting hardware, always ensure the bulb is mounted at the 2 o'clock or 10 o'clock position on the suction line and fully insulated to prevent false ambient air readings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
