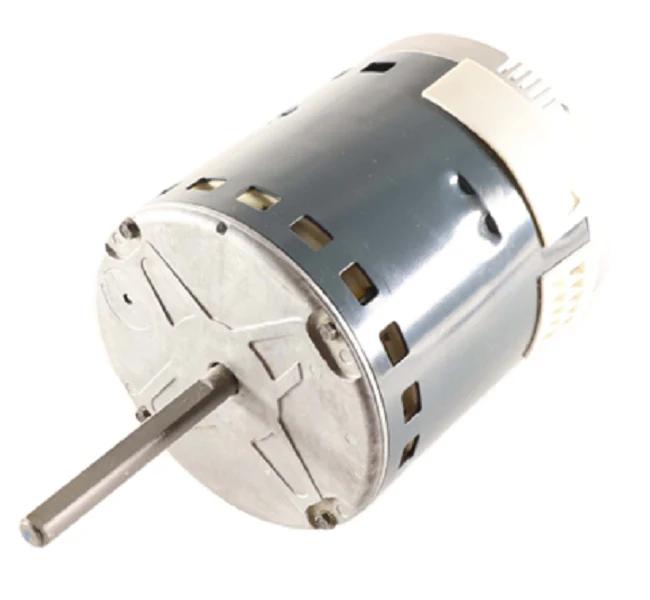

Heil Quaker ICP 1191620 Blower Motor
The Heil Quaker ICP 1191620 Blower Motor is a high-efficiency 3/4 HP ECM motor designed specifically for International Comfort Products (ICP) equipment, including brands like Tempstar, Comfortmaker, and KeepRite. Operating at 230V (compatible with 208-240V range), this X-13 constant torque motor provides reliable, variable-speed performance to maintain optimal static pressure and airflow across your ductwork. As a direct-drive NEMA 48 frame unit, it features a standard 1/2-inch shaft and ball-bearing construction for quiet, continuous-duty operation. This OEM replacement blower motor is programmed to match factory performance curves, ensuring a drop-in plug-and-play installation without the need for field programming. Whether you are addressing a seized bearing or a failed control module, the 1191620 delivers the precise torque required for high-efficiency HVAC systems.
Key Benefits- Variable Speed Efficiency: The X-13 ECM technology adjusts torque to maintain consistent CFM, improving home comfort and reducing energy consumption compared to standard PSC motors.
- Seamless Compatibility: Specifically engineered for ICP HVAC equipment, ensuring the motor harness and mounting brackets align perfectly with original specifications.
- Quiet Operation: Precision-balanced internal components and high-grade ball bearings minimize vibration and mechanical noise during ramp-up and steady-state cooling or heating cycles.
- Simplified Retrofit: Pre-programmed with the correct rotation and speed taps for part number 1191620, significantly reducing time on the job site.
Is the 1191620 motor compatible with 115V systems?
No, this specific model is rated for 230V applications. Installing it in a 115V furnace or air handler will prevent the integrated control module from functioning and may cause damage.
Does this motor require a separate run capacitor?
Since this is an ECM Blower Motor, it does not utilize a traditional external run capacitor. The phase conversion and start-up torque are managed by the internal electronic control module.
Can I use this to replace a 1/2 HP motor?
It is critical to match the horsepower rating of the original equipment. Upgrading to a 3/4 HP motor in a system designed for 1/2 HP can cause excessive static pressure and potential damage to the blower wheel or heat exchanger.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $410.39
-65%$410.39
$143.64Heil Quaker ICP 1191620 Blower Motor
The Heil Quaker ICP 1191620 Blower Motor is a high-efficiency 3/4 HP ECM motor designed specifically for International Comfort Products (ICP) equipment, including brands like Tempstar, Comfortmaker, and KeepRite. Operating at 230V (compatible with 208-240V range), this X-13 constant torque motor provides reliable, variable-speed performance to maintain optimal static pressure and airflow across your ductwork. As a direct-drive NEMA 48 frame unit, it features a standard 1/2-inch shaft and ball-bearing construction for quiet, continuous-duty operation. This OEM replacement blower motor is programmed to match factory performance curves, ensuring a drop-in plug-and-play installation without the need for field programming. Whether you are addressing a seized bearing or a failed control module, the 1191620 delivers the precise torque required for high-efficiency HVAC systems.
Key Benefits- Variable Speed Efficiency: The X-13 ECM technology adjusts torque to maintain consistent CFM, improving home comfort and reducing energy consumption compared to standard PSC motors.
- Seamless Compatibility: Specifically engineered for ICP HVAC equipment, ensuring the motor harness and mounting brackets align perfectly with original specifications.
- Quiet Operation: Precision-balanced internal components and high-grade ball bearings minimize vibration and mechanical noise during ramp-up and steady-state cooling or heating cycles.
- Simplified Retrofit: Pre-programmed with the correct rotation and speed taps for part number 1191620, significantly reducing time on the job site.
Is the 1191620 motor compatible with 115V systems?
No, this specific model is rated for 230V applications. Installing it in a 115V furnace or air handler will prevent the integrated control module from functioning and may cause damage.
Does this motor require a separate run capacitor?
Since this is an ECM Blower Motor, it does not utilize a traditional external run capacitor. The phase conversion and start-up torque are managed by the internal electronic control module.
Can I use this to replace a 1/2 HP motor?
It is critical to match the horsepower rating of the original equipment. Upgrading to a 3/4 HP motor in a system designed for 1/2 HP can cause excessive static pressure and potential damage to the blower wheel or heat exchanger.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
