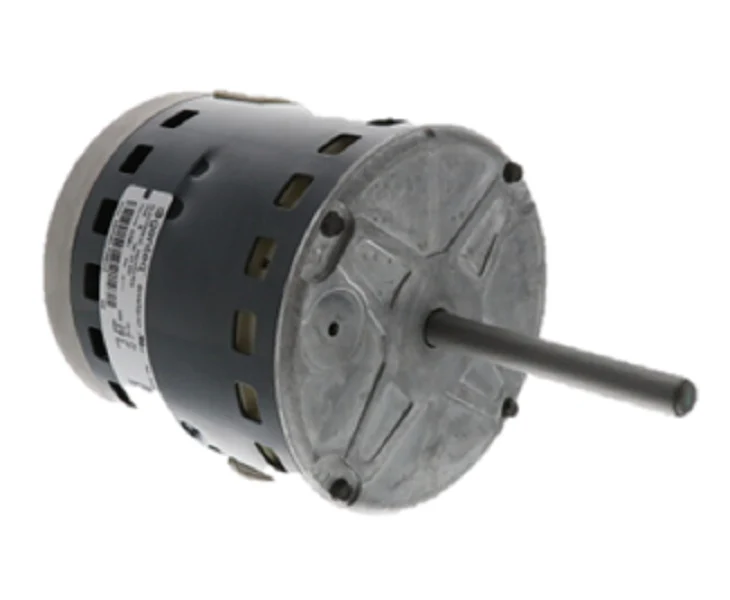

Heil Quaker ICP 1191609 Motor
The Heil Quaker ICP 1191609 motor is a precision-engineered PSC (Permanent Split Capacitor) replacement designed for demanding HVACR applications. Operating at 208-230V, 1-phase, this 1/3 HP condenser fan motor delivers a consistent 1050 RPM to ensure optimal heat exchange and system pressure stabilization. It features an open air over (OAO) design for efficient thermal management and uses a standard 48-frame configuration for seamless drop-in compatibility with various ICP, Heil, and Tempstar condensing units. The heavy-duty ball bearing system is built to handle high ambient temperatures, maintaining refrigerant cycle efficiency under peak load. For technicians performing field service, this direct drive motor offers reliable torque and low vibration, significantly reducing mechanical stress on the fan blade and housing. Verify your microfarad (mfd) capacitor requirements to match the 230V specifications for peak starting torque and amp draw performance.
Key Benefits
- OEM Compatibility: Exact drop-in replacement for ICP part 1191609, ensuring proper shaft diameter and lead length.
- Thermal Protection: Features internal automatic reset thermal overload protection to prevent winding failure.
- Optimized Airflow: The 1050 RPM rating is specifically calibrated for residential and light commercial condenser coils to maintain subcooling levels.
- Durable Construction: Engineered with Class B insulation to withstand the rigors of outdoor environments and continuous duty cycles.
Common Questions
What is the frame size and shaft dimension for the 1191609?
This is a NEMA 48 frame motor with a standard 1/2-inch diameter shaft, common in most Heil and Quaker outdoor units.
Does this motor require a new run capacitor?
Yes, it is standard industry practice to replace the run capacitor when installing a new 1/3 HP fan motor to ensure the 208-230V circuit operates at the correct phase angle.
Can this motor be used in multi-speed applications?
The 1191609 is a single-speed motor designed specifically for constant 1050 RPM operation in direct-drive fan applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
