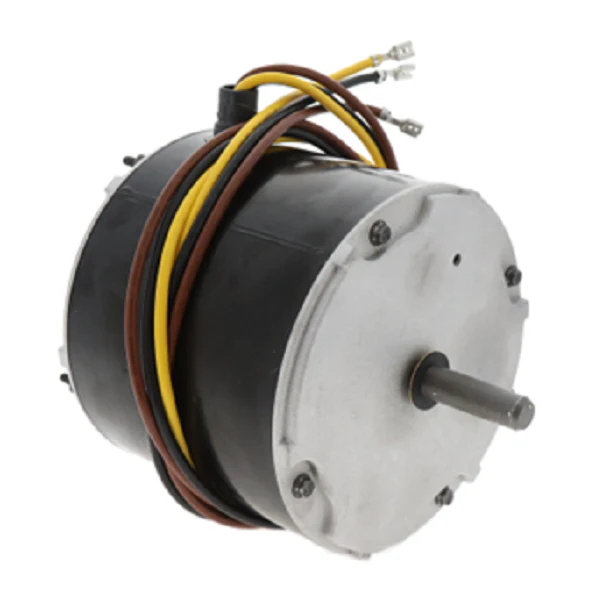

Heil Quaker ICP 1191594 Motor
The Heil Quaker ICP 1191594 Motor is a direct-drive 1/4 HP condenser fan motor engineered for high-static pressure applications in residential and light commercial condensing units. This OEM replacement motor eliminates the mounting difficulties often associated with universal motors, featuring the exact frame size and shaft dimensions required for Intercity Products (ICP) equipment. Operating at 1075 RPM with a standard 208-230V single-phase power requirement, it ensures optimal airflow across the condenser coils for efficient heat rejection. The motor is designed with Class B insulation to withstand the high ambient temperatures found within the outdoor cabinet, preventing premature thermal overload. For service technicians, the permanent split capacitor (PSC) design provides reliable starting torque and energy-efficient operation. Ensure a new 5 MFD / 370V capacitor is installed during the swap to maintain the proper phase angle and protect the internal windings from excessive heat during startup cycles.
- Direct OEM Fit: Designed specifically for Heil, Quaker, and ICP units, ensuring the 1/2-inch shaft and bolt pattern align perfectly with the existing fan blade and mounting bracket.
- Optimized RPM: The 1075 RPM rating is calibrated to match the original system’s CFM requirements, preventing head pressure spikes or subcooling issues.
- All-Weather Reliability: Features a totally enclosed air over (TEAO) enclosure to prevent moisture and debris from entering the internal motor components.
- Reversible Rotation: Built to accommodate various shroud configurations, allowing for flexible installation across multiple ICP cabinet designs.
Common HVAC Contractor Questions
What capacitor is required for the 1191594 motor?
This 1/4 HP motor requires a 5 MFD 370-volt run capacitor. Reusing an old capacitor can lead to motor humming or failure to start under load.
Can this motor be used in applications with different voltage ratings?
No, this motor is specifically rated for 208-230V. Using it on a 115V or 460V circuit will cause immediate failure of the windings.
Does this motor include the fan blade or mounting hardware?
This is the motor only. Technicians should utilize the existing 1/2-inch bore fan blade and mounting nuts from the unit being serviced.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
