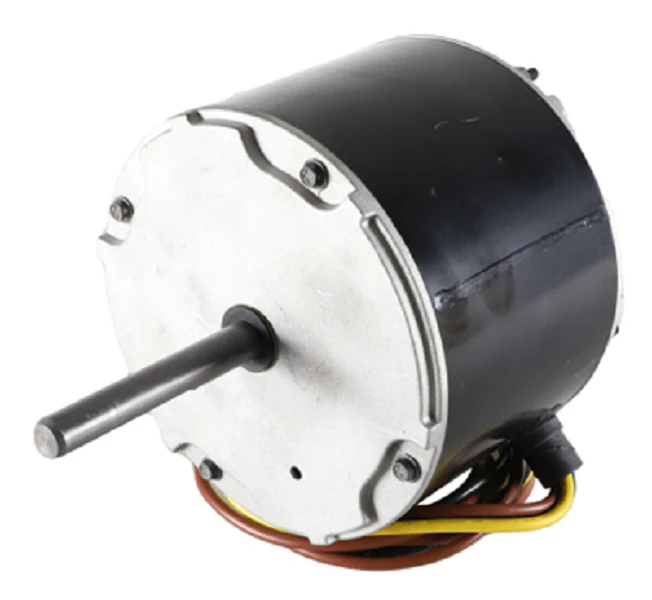

Heil Quaker ICP 1191593 Motor
The Heil Quaker ICP 1191593 Motor is a precision-engineered PSC (Permanent Split Capacitor) condenser fan motor designed specifically for ICP family equipment, including Heil, Tempstar, and Comfortmaker units. Operating at 208-230V, single-phase, this 1/12 HP motor runs at a fixed 800 RPM, making it a critical component for maintaining proper head pressure and heat transfer in residential condensing units. Built with a 48-frame diameter and Sleeve Bearing design, this motor is optimized for vertical shaft-up or shaft-down applications. When performing a HVAC motor replacement, ensure the run capacitor (typically 5 MFD/370V, verify on nameplate) is replaced simultaneously to prevent premature winding failure. This OEM ICP replacement motor ensures the electrical load matches the original factory specifications, preventing the common amp-draw issues associated with generic multi-horsepower motors. For technicians troubleshooting condenser fan motor failure, this 1191593 provides the exact mounting bolt pattern and lead length required for a clean, efficient install.
Key Technical Benefits
- OEM Match: Exact drop-in replacement for Heil Quaker 1191593 and ICP 1191593, eliminating the need for bracket modifications.
- Optimized Airflow: The 800 RPM rating is calibrated for specific coil static pressures, ensuring the unit maintains design EER/SEER ratings.
- Thermal Protection: Features automatic reset thermal overload protection to prevent stator burnout during high-ambient operating conditions.
- Resilient Construction: Engineered with a weather-protected enclosure to handle moisture and debris common in outdoor condenser environments.
Common Contractor Questions
What capacitor is required for the 1191593 motor?
Most variations of this 48-frame motor require a 5 MFD 370V capacitor, but always check the label on the new motor casing as manufacturer specs can update.
Can I use this to replace a 1075 RPM motor?
No. Dropping from 1075 RPM to 800 RPM will significantly reduce CFM across the condenser coil, leading to high head pressure and potential compressor damage.
Is this motor reversible?
This specific OEM part is typically factory-set for clockwise or counter-clockwise lead-end rotation. Verify the rotation of the existing fan blade before installation to ensure proper airflow direction.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
