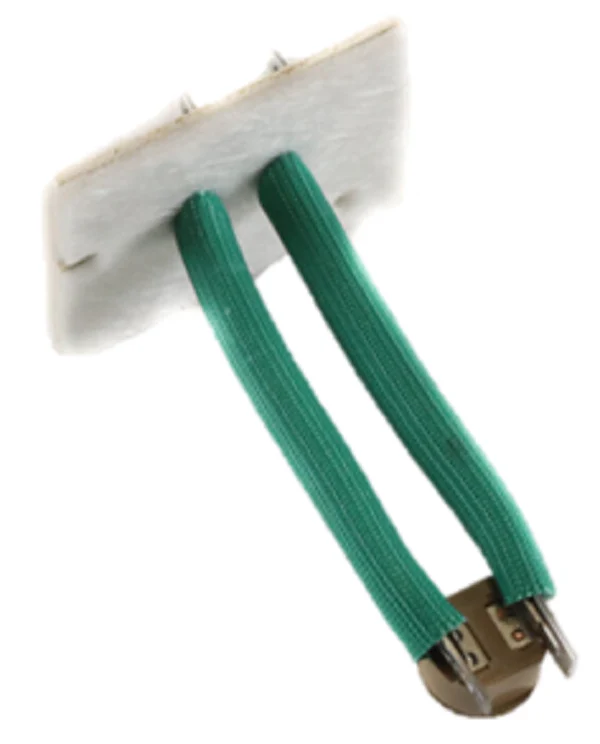

Heil Quaker ICP 1191126 Limit Switch
The Heil Quaker ICP 1191126 Limit Switch is a critical high-limit safety component engineered for precise thermal regulation within residential and light commercial forced-air furnaces. As a high-performance L150-40F limit switch, this device features an industrial-grade snap-action disc designed to interrupt the burner circuit if heat exchanger temperatures exceed the safety threshold of 150?F. The automatic reset functionality ensures the system resumes operation once the plenum temperature drops by the 40?F differential, maintaining consistent HVAC system safety without manual intervention.
This genuine OEM furnace part is a direct replacement for the HH12ZZ150 and is compatible with a wide range of International Comfort Products (ICP) brands, including Heil, Tempstar, Comfortmaker, and Arcoaire. For technicians performing a furnace limit switch replacement, the 1191126 provides a plug-and-play fit with standard 1/4 inch spade terminals and a durable panel-mount flange. Utilizing an authentic ICP replacement part ensures the system remains within original manufacturer specifications, preventing premature component fatigue and ensuring reliable gas furnace troubleshooting and repair outcomes.
Key Benefits:- Precise Thermal Calibration: Calibrated specifically to L150-40F specs, opening at 150?F and closing at 110?F to protect the heat exchanger from cracks.
- Broad ICP Compatibility: Works as a universal-fit safety for modern N95ESN and N96VSN series high-efficiency furnaces.
- Snap-Action Reliability: High-amperage (15A at 120/240VAC) silver contacts prevent arcing and ensure a clean electrical break.
- Rugged Construction: Built to withstand the high-cycle environments of HVAC blower motor failures or restricted airflow conditions.
What causes a limit switch like the 1191126 to trip?
The most common causes for a limit switch trip are restricted airflow due to a dirty air filter, a failing indoor blower motor, or blocked return air vents, causing the heat exchanger to overheat.
Can I use a different temperature rating if the L150-40F is out of stock?
No. Using a switch with a higher opening temperature can lead to hazardous overheating and heat exchanger damage. Always match the OEM temperature setpoints for safety compliance.
How do I test if my HH12ZZ150 replacement is functioning?
Technicians should check for continuity across the terminals at room temperature. The 1191126 is a normally closed (NC) switch; if it shows "open" (infinite resistance) while cool, the internal disc has failed and the part requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $26.51
-65%$26.51
$9.28Heil Quaker ICP 1191126 Limit Switch
