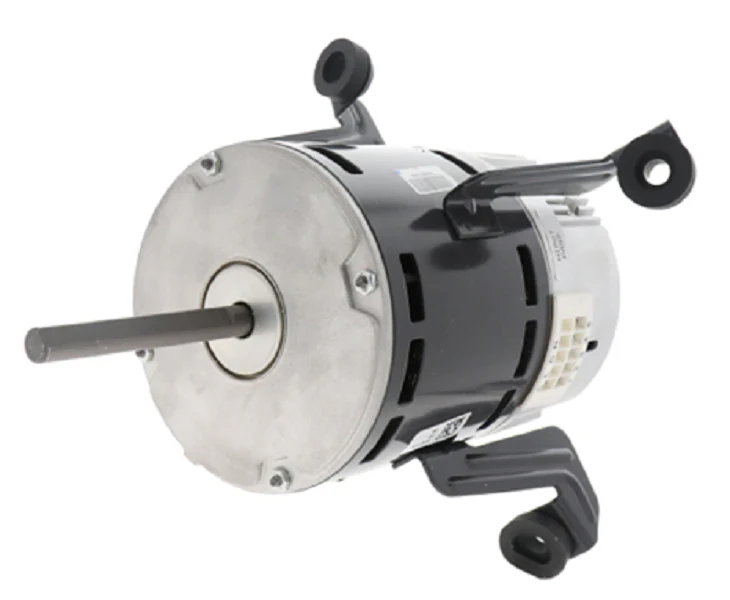

Heil Quaker ICP 1190689 Motor
The Heil Quaker ICP 1190689 Motor is a high-efficiency 115v 1hp ECM blower motor engineered for precision airflow management in residential and light commercial HVAC systems. This direct drive blower motor utilizes Electronically Commutated Motor (ECM) technology to maintain consistent CFM output across varying static pressures, ensuring optimal heat exchange and system efficiency. Designed as a high-performance HVAC replacement motor, it features advanced programmable parameters to match specific factory torque profiles. This Heil Quaker blower motor is critical for maintaining the SEER ratings of ICP equipment, providing the modulation necessary for multi-stage heating and cooling cycles. For contractors, the ICP 1190689 technical specifications ensure a drop-in fit for compatible furnace and air handler cabinets, reducing field labor and eliminating the need for complex mounting modifications. Its brushless design minimizes mechanical wear, offering superior reliability compared to traditional PSC alternatives during high-demand operation cycles.
- Constant Torque Output: Maintains design airflow even as static pressure increases due to loaded filtration.
- High-Efficiency Performance: Reduces electrical consumption significantly during continuous fan operation.
- OEM Compatibility: Exact electrical and mechanical match for broad Heil Quaker parts and ICP equipment catalogs.
- Soft Start Technology: Minimizes mechanical stress on the blower wheel and housing while reducing audible startup noise.
Common Installation Questions
Is this a direct replacement for 115V PSC motors?
The 1190689 is an ECM motor. It requires specific wiring harness configurations and control board signals. It is not a direct plug-and-play replacement for standard induction motors without the appropriate ICP control interface.
Does this motor require a capacitor for startup?
No, as an ECM unit, the capacitor functions are integrated into the electronic control module mounted on the rear of the motor housing.
How do I verify the rotation direction?
This motor follows the factory-programmed rotation specific to ICP 1190689 standards. Always check the lead connections and control board settings to ensure correct CW or CCW orientation for your specific blower housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $635.56
-65%$635.56
$222.45Heil Quaker ICP 1190689 Motor
The Heil Quaker ICP 1190689 Motor is a high-efficiency 115v 1hp ECM blower motor engineered for precision airflow management in residential and light commercial HVAC systems. This direct drive blower motor utilizes Electronically Commutated Motor (ECM) technology to maintain consistent CFM output across varying static pressures, ensuring optimal heat exchange and system efficiency. Designed as a high-performance HVAC replacement motor, it features advanced programmable parameters to match specific factory torque profiles. This Heil Quaker blower motor is critical for maintaining the SEER ratings of ICP equipment, providing the modulation necessary for multi-stage heating and cooling cycles. For contractors, the ICP 1190689 technical specifications ensure a drop-in fit for compatible furnace and air handler cabinets, reducing field labor and eliminating the need for complex mounting modifications. Its brushless design minimizes mechanical wear, offering superior reliability compared to traditional PSC alternatives during high-demand operation cycles.
- Constant Torque Output: Maintains design airflow even as static pressure increases due to loaded filtration.
- High-Efficiency Performance: Reduces electrical consumption significantly during continuous fan operation.
- OEM Compatibility: Exact electrical and mechanical match for broad Heil Quaker parts and ICP equipment catalogs.
- Soft Start Technology: Minimizes mechanical stress on the blower wheel and housing while reducing audible startup noise.
Common Installation Questions
Is this a direct replacement for 115V PSC motors?
The 1190689 is an ECM motor. It requires specific wiring harness configurations and control board signals. It is not a direct plug-and-play replacement for standard induction motors without the appropriate ICP control interface.
Does this motor require a capacitor for startup?
No, as an ECM unit, the capacitor functions are integrated into the electronic control module mounted on the rear of the motor housing.
How do I verify the rotation direction?
This motor follows the factory-programmed rotation specific to ICP 1190689 standards. Always check the lead connections and control board settings to ensure correct CW or CCW orientation for your specific blower housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
