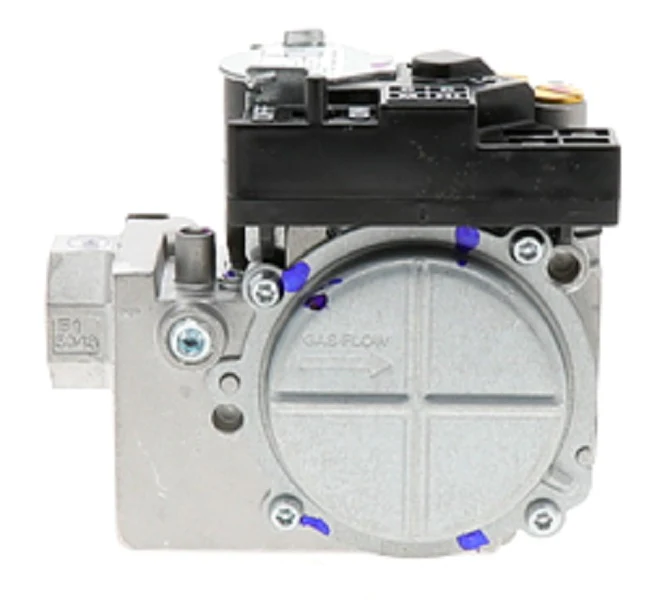

Heil Quaker ICP 1190409 Gas Valve
The Heil Quaker ICP 1190409 Gas Valve is a critical OEM replacement part designed for high-efficiency 2-stage natural gas furnaces. This White-Rodgers 36J56-580 model features a slow-opening characteristic to ensure smooth ignition and quiet operation in direct spark or hot surface ignition (HSI/DSI) systems. Engineered for precision, the 24V gas valve is factory-set with a low-fire manifold pressure of 1.5" W.C. and a high-fire pressure of 3.5" W.C., providing reliable fuel regulation for systems ranging up to 210,000 BTU/HR. With a compact footprint and standard 1/2" NPT inlet/outlet, it serves as a direct drop-in for various International Comfort Products brands, including Heil, Tempstar, Comfortmaker, and Arcoaire.
Key Benefits
- Precise 2-Stage Regulation: Optimizes furnace efficiency by managing low and high heat cycles with factory-calibrated manifold pressure settings.
- Slow-Opening Operation: Minimizes "hard light-off" noise and enhances burner ignition stability for improved homeowner comfort.
- Broad Compatibility: Replaces older part numbers such as 1184392 and matches the 36J56-580 manufacturer specification perfectly.
- Rugged Temperature Rating: Certified for ambient environments from -40? F to 175? F, ensuring performance in unconditioned mechanical spaces.
- Integrated Service Ports: Includes 1/8" NPT pressure taps for accurate manometer readings during gas valve installation and troubleshooting.
Common Questions
Is the ICP 1190409 compatible with LP gas conversions?
Yes, while this unit is configured for natural gas out of the box, it can be converted for liquid propane (LP) applications using the appropriate manufacturer-approved conversion kit. Always verify output pressure after conversion.
What are the symptoms of a failing 36J56-580 valve?
Contractors often report "no heat" calls where the igniter glows but the valve stays closed. If you measure 24V at the solenoid but hear no audible click or see no manifold pressure rise, the internal mechanical seat or solenoid coil has likely failed.
Does this valve replace single-stage units?
No, this is a two-stage gas valve. You should only use it in 2-stage furnaces (like the G96VTN or F96CTN series) where the integrated furnace control (IFC) provides the necessary signals for both high and low fire operation.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
