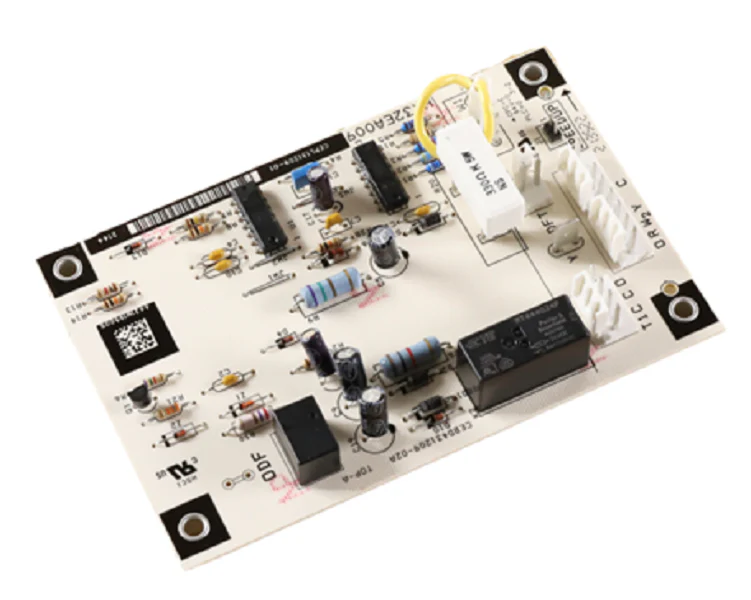

Heil Quaker ICP 1190281 Board
The Heil Quaker ICP 1190281 Defrost Control Board is a critical OEM replacement component designed for high-performance heat pump systems. As a veteran-grade HVAC defrost control, this board manages the transition between heating and cooling modes to prevent ice accumulation on the outdoor coil. It is an exact drop-in ICP replacement part for many Heil, Tempstar, Comfortmaker, and Arcoaire models, including the NXH5 and NXH6 series. This circuit board monitors coil temperature and system run-time to initiate a defrost cycle only when necessary, maintaining thermal efficiency and system longevity. By accurately controlling the reversing valve and outdoor fan motor, the 1190281 board eliminates unnecessary mechanical stress and prevents common system lockouts during extreme winter conditions. For technicians, the standard terminal layout ensures a straightforward installation, preserving the original factory sequence for the heat pump defrost cycle. This reliable OEM HVAC control is essential for restoring the design-specified performance of 24V residential and light commercial equipment.
Key Benefits:
- OEM Compatibility: Precisely engineered as a direct replacement for Heil Quaker 1190281, ensuring perfect physical and electrical alignment.
- System Efficiency: Optimizes defrost cycle intervals, reducing energy waste and preventing excessive wear on the compressor.
- Frost Prevention: Actively monitors temperature sensor inputs to clear coil ice, preventing airflow restrictions and heating loss.
- Durable Construction: Built to withstand the voltage fluctuations and environmental stressors common in outdoor condenser units.
- Plug-and-Play Integration: Features clearly labeled terminals for fast field wiring and consistent system diagnostics.
Common Questions:
How do I know if my defrost board has failed?
Common indicators include the outdoor fan running during a defrost call, the unit failing to shift the reversing valve, or significant ice buildup on the coils while the system continues to run in heat mode. Technicians should verify 24V power at the 'R' and 'Y' terminals before concluding the board is faulty.
Is there a way to manually test the defrost function on this board?
Yes, most ICP boards include 'Speed Up' or 'Test' pins. By briefly jumping these pins with a screwdriver or jumper wire while the system is calling for heat, you can force a defrost cycle to verify that the board can successfully energize the reversing valve and shut off the fan.
Will this board work with generic temperature sensors?
For the most accurate defrost logic, it is highly recommended to use OEM-spec thermistors. This board relies on specific resistance values to calculate the proper termination temperature; using non-compatible sensors can result in short-cycling or incomplete defrosting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
