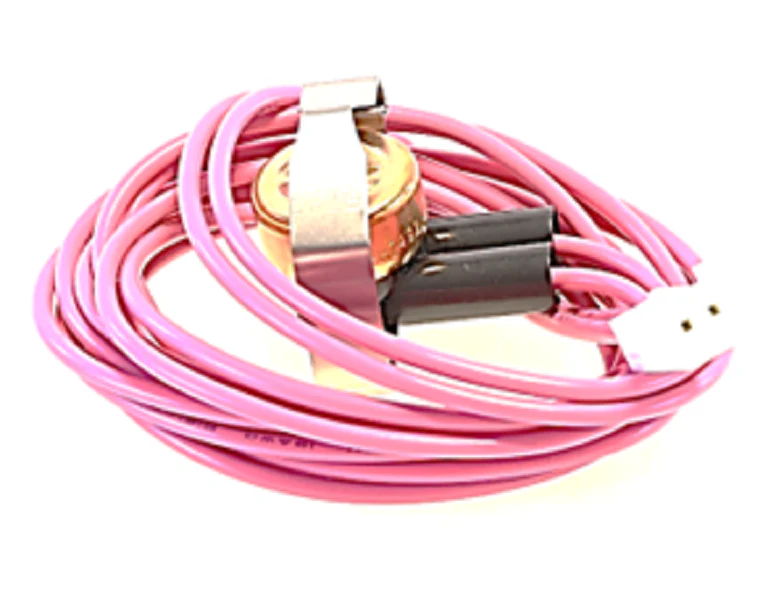

Heil Quaker ICP 1187153 Limit Switch
The Heil Quaker ICP 1187153 Limit Switch, factory-designated as the L55F-22 Limit Switch, is a critical safety component engineered for precise thermal regulation within Heil Quaker and International Comfort Products (ICP) furnace assemblies. This furnace high limit switch is designed to monitor internal temperatures and interrupt the burner circuit if the heat exchanger exceeds its safe operating ceiling. This helps prevent thermal stress and potential damage to the heat exchanger or furnace control board. As a fixed-temperature safety device, it ensures that your HVAC system remains within the manufacturer?s specified parameters during the heating cycle.
For service technicians, this ICP replacement part is a direct-fit solution that eliminates the need for field modifications. When a furnace limit switch trips frequently or fails to reset, it often points to airflow restrictions?such as a clogged filter or a failing blower motor?that cause the plenum temperature to spike. Installing a genuine 1187153 limit switch restores the factory safety sequence, ensuring the blower fan continues to dissipate residual heat even after the burners have been de-energized. This switch is built for high-duty cycles and provides the reliable performance required in residential and light commercial Heil Quaker furnace applications.
Key Benefits
- Precision Thermal Calibration: Engineered with a specific L55F-22 trip point to protect the integrity of the heat exchanger from excessive heat.
- Direct OEM Compatibility: Provides an exact mechanical and electrical match for Heil Quaker and ICP systems, ensuring a seamless HVAC repair.
- Enhanced System Safety: Functions as a failsafe to shut down gas valves or electric heating elements if internal temperatures reach unsafe levels.
- Durable Construction: Built to withstand the environmental stressors found within a furnace cabinet, including high heat and vibration.
- Optimized Airflow Management: Works in conjunction with the system controller to regulate blower fan runtime for maximum efficiency.
Common Questions
Why is my furnace short cycling or the limit switch tripping repeatedly?
Frequent tripping is typically caused by restricted airflow. Check for a dirty air filter, blocked return vents, or dust buildup on the blower wheel. If airflow is clear, the 1187153 limit switch may have weakened over time and requires replacement.
How do I verify if the L55F-22 limit switch is faulty?
Disconnect power and use a multimeter to check for continuity across the terminals while the switch is cool. If the circuit is open at room temperature, the switch is defective and must be replaced to restore furnace operation.
Can I use a universal limit switch instead of the ICP 1187153?
While some universal parts exist, using the specific Heil Quaker ICP 1187153 guarantees that the temperature setpoints and mounting orientation match the original design, maintaining the safety integrity of the equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
