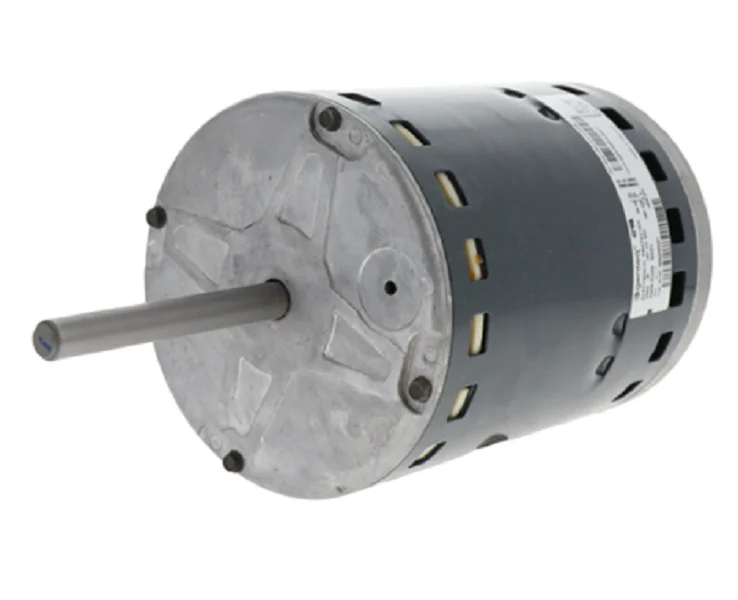

Heil Quaker ICP 1186900 Motor
The Heil Quaker ICP 1186900 is a high-efficiency 1 HP constant torque ECM motor engineered for use in high-static HVAC applications. Operating on 208-230V single-phase power, this brushless DC motor replaces standard PSC blowers to provide more consistent airflow across various duct pressures. As an OEM replacement motor, it integrates seamlessly with ICP furnace and air handler control boards, ensuring the programmed torque profiles match the original equipment manufacturer’s specifications. The electronic commutated motor technology reduces energy consumption while maintaining the necessary CFM for 4-ton and 5-ton systems. This Heil Quaker blower motor features a durable 48-frame housing and sealed ball bearings to withstand high thermal loads in residential and light commercial settings. For contractors requiring a direct-drive ECM motor, the 1186900 provides reliable performance and precise air delivery, optimizing the heat transfer efficiency of the evaporator coil and ensuring proper system static balance.
- High-Efficiency ECM Technology: Reduces energy draw compared to standard induction motors while maintaining consistent torque.
- OEM Compatibility: Precision-programmed for Heil, Quaker, Comfortmaker, and other ICP brands to ensure plug-and-play installation.
- Variable Speed Response: Automatically adjusts to static pressure changes to maintain design airflow.
- Resilient Construction: Designed for continuous operation in high-demand heating and cooling cycles.
Common HVACR Contractor Questions
Is this motor compatible with PSC-to-ECM conversions?
The 1186900 is specifically programmed for ICP equipment. While it fits the physical 48-frame mounting, you must verify the control harness pinout matches your existing 5-pin or 16-pin connector to ensure proper torque signaling.
Can I use a standard run capacitor with this motor?
No, this is an ECM motor with integrated power electronics. It does not require an external run capacitor and should be connected directly to the high-voltage and low-voltage control circuits.
How do I verify the rotation direction?
This motor is factory-set to the rotation specified by the ICP part number. Always confirm the rotation (CW or CCW) from the lead end before securing the blower wheel to prevent back-pressure issues.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
