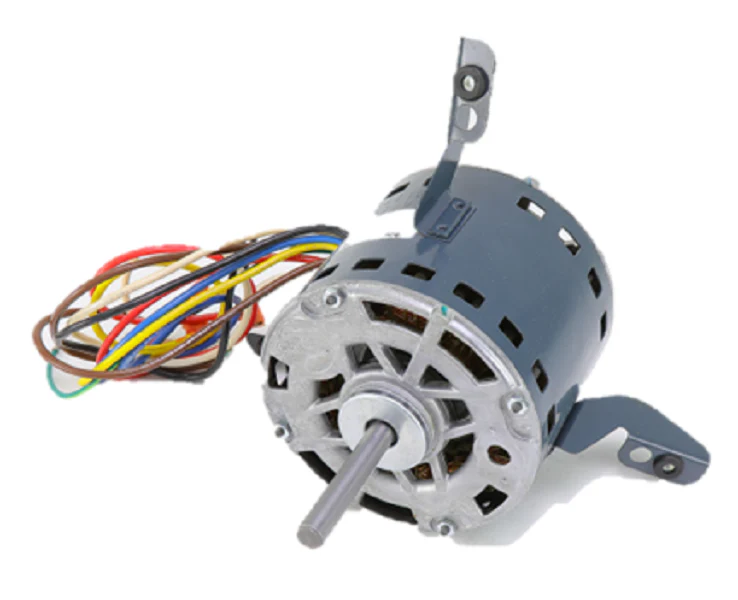

Heil Quaker ICP 1186888 Motor
The Heil Quaker ICP 1186888 Motor is a high-reliability direct drive blower motor designed for mid-static residential and light commercial HVAC systems. This 115V single-phase motor delivers 1/3 HP at a rated speed of 1075 RPM, providing the consistent torque recovery needed for optimal static pressure management. Built on a 48 frame, it features 4-speed taps, allowing technicians to fine-tune system airflow to meet specific seasonal requirements or ductwork configurations. The CCW (counter-clockwise) rotation is fixed from the lead end, making it a drop-in replacement for a wide range of International Comfort Products, including brands like Tempstar, Comfortmaker, and KeepRite. With thermal protection and a Genteq-engineered design, this unit handles high heat-rise conditions safely. Utilizing a 1/2-inch shaft and 2-3/4 inch extension, the ICP 1186888 blower motor ensures a precise fit for standard blower wheel hubs, minimizing vibration and bearing wear in continuous-duty applications.
- Multi-Speed Flexibility: Features 4-speed taps for precise airflow balancing across different system tonnages.
- OEM Compatibility: Engineered as a direct replacement for Heil Quaker and ICP furnace motors, ensuring proper electrical and mechanical alignment.
- Industrial Build Quality: Utilizes a 48-frame design with thermal protection for enhanced safety during extended run cycles.
- Efficient Performance: Optimized 1075 RPM output provides the necessary static pressure to maintain efficiency in modern air handlers.
Common Questions:
What capacitor is required for the ICP 1186888 motor?
Standard installations for this 1/3 HP motor typically require a 5 MFD or 7.5 MFD 370V run capacitor; always verify the rating on the original motor nameplate before installation.
Can this motor replace a 3-speed blower motor?
Yes, this 4-speed motor can replace a 3-speed unit. Extra leads should be properly insulated and capped if they are not used for specific fan speed settings.
How do I verify the rotation direction?
This motor is rated for CCW rotation from the lead end. If your current assembly requires CW rotation or is reversible, verify the lead-end orientation to ensure proper blower wheel discharge.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
