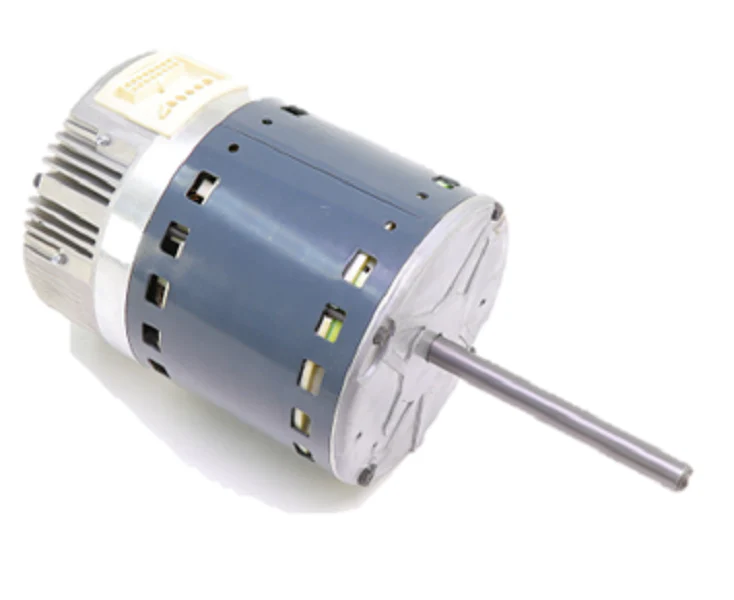

Heil Quaker ICP 1186684 Motor
The Heil Quaker ICP 1186684 Motor is a high-efficiency 3/4 HP ECM blower motor utilizing the Genteq Eon 5.0 motor platform. This direct-drive motor is designed for high-static pressure furnace and air handler applications, providing precise airflow control through programmed torque profiles. As a brushless DC motor, the 1186684 replacement motor features an integrated motor control module that optimizes energy consumption by adjusting speed to meet system demand. This ICP blower motor is commonly found in Tempstar, Comfortmaker, and Heil furnaces, offering a drop-in replacement for failed blower assemblies. Its ECM technology improves SEER ratings and reduces noise during startup and shutdown cycles. When installing this HVAC blower motor, ensure the internal control module is properly calibrated to the specific CFM requirements of the air distribution system to ensure peak performance and compressor protection.
Key Benefits
- Constant Airflow Technology: The Eon 5.0 3/4 HP motor maintains steady airflow across varying static pressures to prevent coil freezing.
- Advanced Control Logic: Integrated electronics provide soft-start and soft-stop functionality, reducing mechanical stress on the blower wheel and motor mounts.
- Direct OEM Compatibility: Specifically engineered for ICP HVAC equipment, ensuring correct shaft diameter, frame size, and electrical connector alignment.
- Energy Efficiency: Significantly higher operational efficiency compared to standard PSC motors, reducing total system amp draw.
Common Questions
How do I confirm if my blower motor or the control module has failed?
Technicians should first verify line voltage and 24V communication signals at the harness. If the motor shaft spins freely and voltage is present but the motor does not engage, the control module or the internal windings may be defective.
Is this Heil Quaker 1186684 motor backwards compatible with older units?
This motor is designed for specific ICP revisions. Always cross-reference the model and serial number of the air handler to ensure the programmed parameters match the original factory specifications.
Can I replace just the motor module instead of the entire 1186684 assembly?
While the module can sometimes be sourced separately, replacing the complete 3/4 HP BLDC motor assembly is recommended to ensure the mechanical load and electrical logic are perfectly synced.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
