Heil Quaker ICP 1186443 Blower Wheel

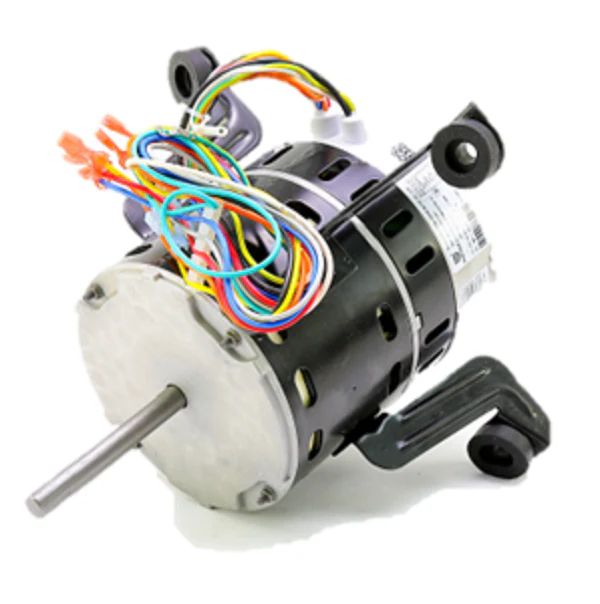

As a seasoned technician, you know that keeping the air moving reliably is non-negotiable. The Heil Quaker ICP 1186443 Blower Motor Assembly is an authentic OEM replacement part designed specifically for International Comfort Products (ICP) equipment, including brands like Heil, Tempstar, Comfortmaker, and Arcoaire. This 1 HP, 115V, single-phase blower motor is a high-performance ECM 5.0 Eon assembly, providing the consistent torque and CFM output required for modern high-efficiency furnaces and air handlers. Featuring a 48 frame size, 1050 RPM, and a CCW (counter-clockwise) rotation from the lead end, this unit is built for heavy-duty service with ball bearings and an arm and grommet mounting system.
When swapping this out, verify your blower wheel integrity. An imbalanced wheel is the primary cause of premature motor failure and mechanical vibration. This ZWK702E0757001 motor utilizes an electronically protected module and a single-side flat shaft (1/2" diameter, 3.92" length) for secure coupling. For maximum reliability, it is standard practice to use an inline surge protector to shield the sensitive ECM internal electronics from voltage spikes and dirty power. This is a direct fast HVAC part replacement for legacy numbers 1184516 and 1185967.
- Precision Airflow: The 1HP Blower Motor maintains calibrated static pressure across various duct configurations.
- ECM Efficiency: Electronic Commutation allows for quieter operation and significantly lower amp draw compared to standard PSC motors.
- Heavy-Duty Build: Ball bearing motor construction and Class B insulation ensure thermal stability during continuous operation.
- Broad Compatibility: Direct drop-in for Heil Quaker 1186443 applications, eliminating the need for field modifications.
Common Questions
What are the symptoms of a failing blower wheel or motor?
Listen for unusual rattling or scraping, which typically indicates a loose hub or debris in the squirrel cage. Weak airflow through the vents or a module that fails to start despite receiving a 24V signal are clear indicators that the ICP 1186443 assembly needs immediate inspection.
Can I replace just the module or do I need the whole assembly?
While the motor and module are separate components, we recommend the 1186443 motor assembly to ensure the internal windings and control firmware are perfectly synced, preventing communication errors with the furnace control board.
How do I confirm this fits my specific air handler?
Don't guess on the job site. Check the model and serial number on the equipment nameplate. This part is widely used in high-capacity Heil furnace blower motor replacements and ICP air handler units from the last decade.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
