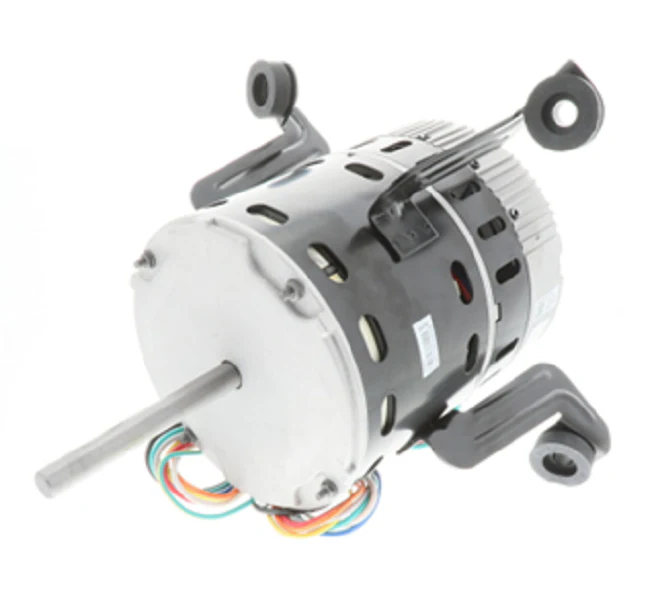

Heil Quaker ICP 1186441 Blower Motor
The Heil Quaker ICP 1186441 Blower Motor is a high-efficiency 1 HP ECM blower motor assembly designed for demanding residential and light commercial HVAC applications. This genuine OEM replacement part features a Broad-Ocean motor programmed to deliver precise airflow across various static pressures, ensuring optimal system performance and energy conservation. Operating at 115-120V and 1050 RPM, the ICP 1186441 utilizes an Electronically Commutated Motor (ECM) design, which includes the control module as a complete assembly. This 48-frame motor is engineered with a 1/2-inch shaft diameter and a 4-inch shaft length, facilitating a direct-drive configuration that reduces mechanical losses. As a high-efficiency HVAC motor, it is compatible with high-performance units from Heil, Tempstar, and Comfortmaker, specifically fitting series such as the F8MX, G8MX, and N80ES. The permanent lubrication and thermal protection circuit ensure long-term reliability in continuous air-over environments, making it a critical ICP furnace part for maintaining consistent indoor climate control.
Key Benefits- Precision Airflow Control: The integrated ECM technology automatically adjusts torque and speed to maintain constant CFM, counteracting resistance from dirty filters or complex ductwork.
- Seamless Integration: As a factory-authorized replacement, this motor assembly matches the exact mounting specifications (Arm and Grommet) and electrical connectors of the original 1186441 and 1185161 models.
- Reliable Construction: Built with high-grade ball bearings and a Class B insulation rating, the motor is designed for 50/60Hz single-phase operation with robust 11.5 Amp draw capacity.
- Broad Compatibility: Engineered to fit a wide range of International Comfort Products equipment, ensuring simplified inventory for contractors servicing diverse systems.
Does this motor include the control module?
Yes, the ICP 1186441 is sold exclusively as a complete motor and module assembly. These components are factory-calibrated to work together and cannot be purchased or installed separately.
What are the signs that my 1 HP ECM motor needs replacement?
Common failure indicators include the blower humming without rotating, erratic fan speeds, or a specific diagnostic fault code on the furnace control board indicating a communication failure with the ECM module.
Is this motor compatible with 230V systems?
No, this specific model (1186441) is rated for 115-120V operation. Always verify the voltage requirements on your unit's data plate before installation to prevent electrical damage to the module.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
