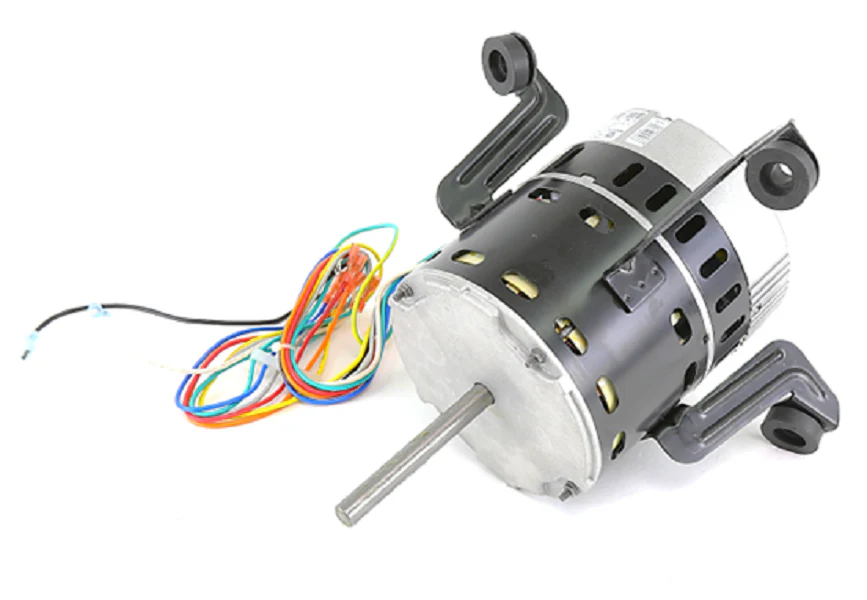

Heil Quaker ICP 1186434 Blower Motor
The Heil Quaker ICP 1186434 Blower Motor is a high-efficiency 3/4 HP ECM motor designed for precise airflow control in residential furnace and air handler applications. As a direct replacement for part number 1185159 and 1183518, this genuine ICP OEM 48-frame motor ensures exact mechanical and electrical compatibility, eliminating the mounting challenges often found with universal alternatives. Operating at 115V with a standard 1050 RPM output, this single-phase unit features a 1/2-inch diameter shaft and ball-bearing construction for long-term reliability in high-cycle environments. For service technicians, this X13 constant torque motor provides the programmed torque curves required to maintain static pressure and system factory specifications across Heil, Tempstar, Comfortmaker, and Arcoaire equipment. Utilizing an ICP 1186434 replacement motor restores optimal air distribution and system efficiency by ensuring the blower assembly operates within its intended performance envelope.
Key Benefits:
- Factory Programmed: This OEM ECM blower motor is programmed with specific torque parameters to match the original airflow requirements of ICP-manufactured air handlers and furnaces.
- Direct Drop-In Fit: Standard NEMA 48 frame and 4-inch shaft length ensure it fits the existing motor bracket and blower wheel without modification.
- Electronic Commutation: The brushless ECM design provides superior efficiency and quieter operation compared to older PSC motors.
- High Torque Output: Rated at 3/4 HP, this motor provides the necessary power to handle high-static ductwork systems efficiently.
Common Questions:
Is this a universal motor?
No, the ICP 1186434 is a genuine OEM replacement. While universal ECM motors exist, they often require complex programming or different mounting kits; this unit is plug-and-play for supported ICP models.
Does this replace part 1185159?
Yes, 1186434 is the direct replacement for 1185159. It is the current production standard specified by the manufacturer for those applications.
Can I use this on a 230V system?
No, this motor is specifically rated for 115V / 60Hz operation. Utilizing this motor on a 230V circuit will cause immediate electronic failure of the integrated control module.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
