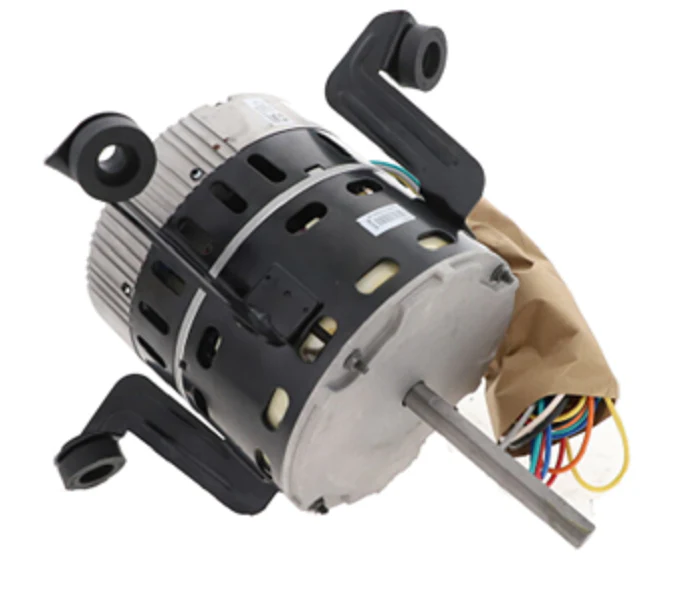

Heil Quaker ICP 1186427 Motor
The Heil Quaker ICP 1186427 Motor is a high-efficiency 1/2 HP ECM blower motor designed for precision airflow control in residential furnaces and air handlers. Operating on 120V with a standard 1050 RPM rating, this electronically commutated motor provides superior torque management compared to traditional PSC alternatives. Built for International Comfort Products systems, including brands like Tempstar, Comfortmaker, and KeepRite, it serves as a direct OEM replacement motor for part number 1185158 and Carrier HD44MQ129. The 5.75-inch diameter housing and 48-frame mounting configuration ensure a drop-in fit for existing blower deck assemblies. Technicians will appreciate the integrated vibration dampers and Class B insulation, which maintain thermal stability during continuous air-over operation. This ICP 1186427 blower motor is engineered to handle variable static pressures, ensuring consistent HVAC system performance and optimized energy consumption across all heating and cooling stages.
Key Benefits- Direct OEM Compatibility: Engineered specifically for Heil Quaker and ICP furnace models, eliminating the need for complex mounting modifications.
- Advanced ECM Technology: Features an electronically protected design that adjusts speed to maintain constant airflow, significantly improving SEER ratings.
- Quiet Operation: Outfitted with vibration dampers on four mounting holes to reduce resonant noise and mechanical wear.
- Simplified Installation: Includes a standard 1/2-inch shaft and 24-inch lead length to match HVAC replacement part specifications.
What does it mean if my 1186427 motor is "hunting" or fluctuating speed?
In ECM motors, speed fluctuations often indicate high static pressure. Check for a dirty air filter or a collapsed duct liner before replacing the blower motor assembly.
Can I replace a PSC motor with this 1186427 ECM motor?
This 120v 1/2hp ECM motor is a programmed component. It should only be used to replace matching ICP 1186427 or cross-referenced broad-ocean motor units to ensure the control module communicates correctly with the furnace control board.
Is the control module available separately from the motor?
The ICP 1186427 is typically sold as a complete assembly. If the module has failed due to a voltage surge, replacing the entire unit is recommended for long-term reliability in Heil furnace parts applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $632.47
-65%$632.47
$221.36Heil Quaker ICP 1186427 Motor
The Heil Quaker ICP 1186427 Motor is a high-efficiency 1/2 HP ECM blower motor designed for precision airflow control in residential furnaces and air handlers. Operating on 120V with a standard 1050 RPM rating, this electronically commutated motor provides superior torque management compared to traditional PSC alternatives. Built for International Comfort Products systems, including brands like Tempstar, Comfortmaker, and KeepRite, it serves as a direct OEM replacement motor for part number 1185158 and Carrier HD44MQ129. The 5.75-inch diameter housing and 48-frame mounting configuration ensure a drop-in fit for existing blower deck assemblies. Technicians will appreciate the integrated vibration dampers and Class B insulation, which maintain thermal stability during continuous air-over operation. This ICP 1186427 blower motor is engineered to handle variable static pressures, ensuring consistent HVAC system performance and optimized energy consumption across all heating and cooling stages.
Key Benefits- Direct OEM Compatibility: Engineered specifically for Heil Quaker and ICP furnace models, eliminating the need for complex mounting modifications.
- Advanced ECM Technology: Features an electronically protected design that adjusts speed to maintain constant airflow, significantly improving SEER ratings.
- Quiet Operation: Outfitted with vibration dampers on four mounting holes to reduce resonant noise and mechanical wear.
- Simplified Installation: Includes a standard 1/2-inch shaft and 24-inch lead length to match HVAC replacement part specifications.
What does it mean if my 1186427 motor is "hunting" or fluctuating speed?
In ECM motors, speed fluctuations often indicate high static pressure. Check for a dirty air filter or a collapsed duct liner before replacing the blower motor assembly.
Can I replace a PSC motor with this 1186427 ECM motor?
This 120v 1/2hp ECM motor is a programmed component. It should only be used to replace matching ICP 1186427 or cross-referenced broad-ocean motor units to ensure the control module communicates correctly with the furnace control board.
Is the control module available separately from the motor?
The ICP 1186427 is typically sold as a complete assembly. If the module has failed due to a voltage surge, replacing the entire unit is recommended for long-term reliability in Heil furnace parts applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
