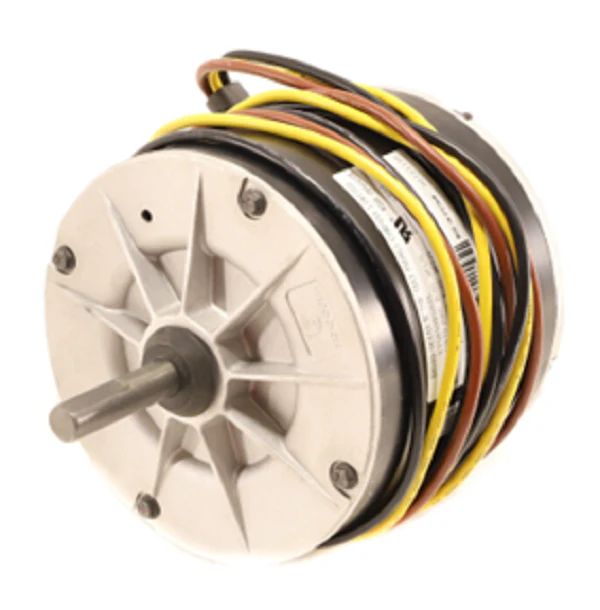

Heil Quaker ICP 1186359 Motor
The Heil Quaker ICP 1186359 is a heavy-duty condenser fan motor designed for reliable thermal heat dissipation in residential and light commercial HVAC units. This permanent split capacitor (PSC) motor identifies as a versatile replacement option, operating at 208-230V single-phase power. Rated for dual horsepower applications at 1/6 HP and 1/5 HP, it maintains a consistent 810 RPM to ensure optimal airflow across the coil under high static pressure. Built with an open air over (OAO) enclosure, the motor utilizes ambient airflow for cooling the internal windings, extending the service life of the ball bearings. The 48-frame design features standard mounting patterns for easy integration into Heil, Tempstar, and Comfortmaker equipment. As a direct OEM replacement motor, it ensures electrical compatibility and maintains the original system factory specifications, preventing common issues like amperage spikes or premature compressor failure due to insufficient cooling.
Key Technical Benefits- Dual Horsepower Compatibility: Engineered to function efficiently at both 1/6 and 1/5 HP ratings.
- Low RPM Efficiency: The 810 RPM specification provides quiet operation while moving necessary air volume.
- Thermal Protection: Internal automatic reset thermal overload protection prevents winding burnout during voltage fluctuations.
- All-Angle Mounting: Equipped with robust ball bearings for vertical or horizontal shaft orientation.
- Direct Fit: Eliminates the need for bracket modification in ICP 1186359 specific housing.
What capacitor is required for the Heil 1186359 motor?
This motor typically requires a 5 MFD / 370V run capacitor; however, always verify the microfarad rating on the new motor's nameplate before installation.
Can I use this to replace a 1075 RPM motor?
No, replacing a higher RPM motor with this 810 RPM model will result in insufficient head pressure control and potential system failure.
Is this motor reversible?
Standard ICP replacement motors are often set to a specific rotation (usually CCWLE), so check the lead wire diagram to ensure it matches your fan blade pitch.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $277.75
-65%$277.75
$97.21Heil Quaker ICP 1186359 Motor
The Heil Quaker ICP 1186359 is a heavy-duty condenser fan motor designed for reliable thermal heat dissipation in residential and light commercial HVAC units. This permanent split capacitor (PSC) motor identifies as a versatile replacement option, operating at 208-230V single-phase power. Rated for dual horsepower applications at 1/6 HP and 1/5 HP, it maintains a consistent 810 RPM to ensure optimal airflow across the coil under high static pressure. Built with an open air over (OAO) enclosure, the motor utilizes ambient airflow for cooling the internal windings, extending the service life of the ball bearings. The 48-frame design features standard mounting patterns for easy integration into Heil, Tempstar, and Comfortmaker equipment. As a direct OEM replacement motor, it ensures electrical compatibility and maintains the original system factory specifications, preventing common issues like amperage spikes or premature compressor failure due to insufficient cooling.
Key Technical Benefits- Dual Horsepower Compatibility: Engineered to function efficiently at both 1/6 and 1/5 HP ratings.
- Low RPM Efficiency: The 810 RPM specification provides quiet operation while moving necessary air volume.
- Thermal Protection: Internal automatic reset thermal overload protection prevents winding burnout during voltage fluctuations.
- All-Angle Mounting: Equipped with robust ball bearings for vertical or horizontal shaft orientation.
- Direct Fit: Eliminates the need for bracket modification in ICP 1186359 specific housing.
What capacitor is required for the Heil 1186359 motor?
This motor typically requires a 5 MFD / 370V run capacitor; however, always verify the microfarad rating on the new motor's nameplate before installation.
Can I use this to replace a 1075 RPM motor?
No, replacing a higher RPM motor with this 810 RPM model will result in insufficient head pressure control and potential system failure.
Is this motor reversible?
Standard ICP replacement motors are often set to a specific rotation (usually CCWLE), so check the lead wire diagram to ensure it matches your fan blade pitch.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
