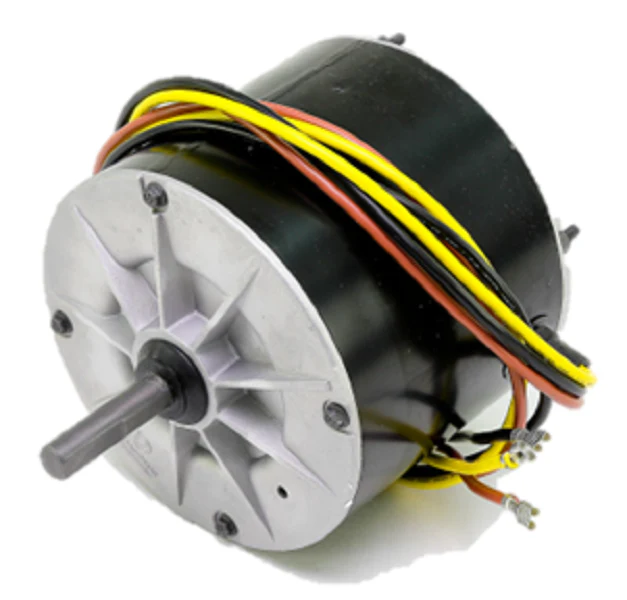

Heil Quaker ICP 1186358 Motor
The Heil Quaker ICP 1186358 Motor is a high-performance OEM replacement condenser fan motor designed for precision and reliability in residential and light commercial cooling systems. This multi-horsepower motor operates at 1/5 HP when powered by 230V and 1/6 HP at 208V, delivering a consistent 810 RPM to maintain optimal heat exchange. Built on a NEMA 48 frame, the unit features a totally enclosed air over (TEAO) design to protect internal components from environmental debris. The 1/2-inch diameter shaft with a 2.5-inch length ensures a secure fit with standard fan blades, while the ball bearing construction supports continuous, high-duty cycles. As a permanent split capacitor (PSC) motor, it requires a 5 MFD / 370 VAC capacitor for efficient startup and operation. This clockwise lead end (CWLE) rotation motor is the standard replacement HVAC motor for several International Comfort Products (ICP) brands, including Heil, Tempstar, and Comfortmaker.
Key Benefits- Dual-Voltage Versatility: Engineered to perform across 208-230V applications without sacrificing 810 RPM stability.
- Enhanced Durability: The TEAO enclosure and ball bearing system reduce friction and prevent premature failure in harsh outdoor conditions.
- Precision OEM Fit: Direct drop-in replacement for part # 1186358, eliminating the need for mounting modifications on 48-frame brackets.
- Thermal Protection: Integrated internal safeguards prevent winding burnout during over-amperage or high-heat scenarios.
What capacitor is required for the ICP 1186358 motor?
This motor requires a 5 MFD / 370 VAC capacitor (sold separately) to maintain proper torque and efficiency.
Is this motor compatible with 1/6 HP or 1/5 HP requirements?
Yes, this dual-rated motor covers both requirements depending on your supply voltage (1/6 HP @ 208V and 1/5 HP @ 230V).
How do I confirm the rotation of my existing motor?
Verify your current fan pitch; this motor is clockwise lead end (CWLE), which is critical for pulling air correctly through the condenser coils.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
