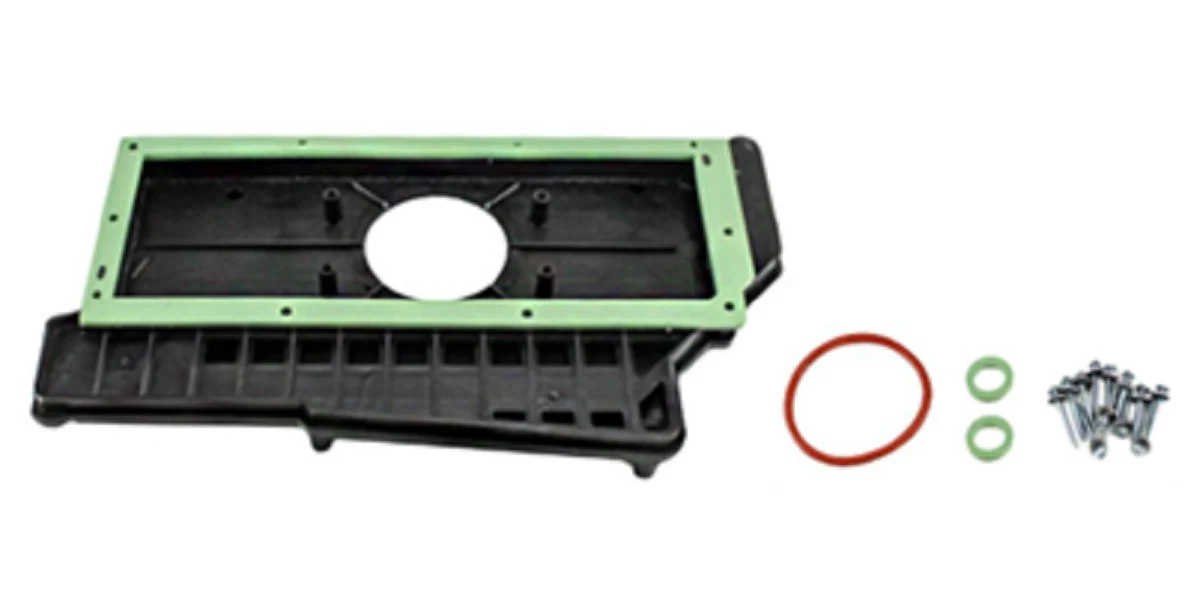

Heil Quaker ICP 1186072 Collector Box Assembly
The Heil Quaker ICP 1186072 Collector Box Assembly is a critical fluid management component for condensing gas furnaces, specifically designed for 36-inch high-efficiency units ranging from 40,000 to 80,000 BTU. This genuine OEM replacement part is the primary interface between the secondary heat exchanger and the draft inducer motor, engineered to manage acidic condensate and ensure proper vacuum pressure for burner ignition. For technicians troubleshooting pressure switch codes or discovering hairline cracks in the existing housing, this assembly restores the airtight seal necessary for combustion safety and efficiency.
Replacing a compromised collector box with the ICP 1186072 helps eliminate common failure points such as water backup into the inducer and "frozen" pressure switch symptoms. This comprehensive kit includes the 1186072 Collector Box, inducer housing drain gaskets, an inducer inlet gasket, and twelve mounting screws with washers to ensure a complete and leak-free installation. As an authentic International Comfort Products (ICP) component, it features a 3-1/4 inch inducer hole and is designed to withstand the thermal stress and corrosive environment of high-efficiency condensation cycles.
Key Benefits for HVAC Professionals
- Full Installation Kit: Includes the essential gaskets and mounting hardware (12 screws/washers) required to prevent post-repair leaks.
- Precise OEM Specs: Designed for an exact fit on 40k-80k BTU heat exchangers, maintaining the specific pressure differentials required by the furnace control board.
- Multi-Brand Compatibility: Direct replacement for Heil, Tempstar, Comfortmaker, Arcoaire, and KeepRite models, simplifying truck stock requirements.
- Durability: Constructed from high-grade polymers engineered to resist the acidic byproduct of condensing natural gas operations.
- Broad Application: Replaces superseded part numbers 1184293, 1184339, and 1186181.
Common Questions & Technical Support
What furnace models utilize the 1186072 assembly?
This part fits a wide range of ICP-manufactured condensing furnaces, including the F9MVE, G9MVE, and R92ESN series. It is frequently found in 90%+ AFUE systems across the Heil and Tempstar product lines.
Does this kit include the necessary gaskets?
Yes. This assembly includes the inducer housing drain gaskets and the inlet gasket. Reusing old, compressed gaskets can lead to airflow bypass and pressure switch oscillation.
Why is my collector box leaking behind the inducer?
Collector boxes often develop fatigue cracks due to thermal expansion or improper furnace pitch. Replacing the unit with the genuine 1186072 ensures the drain ports and baffles are correctly aligned for gravitational drainage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
