Heil Quaker ICP 1186064 Harness Assembly

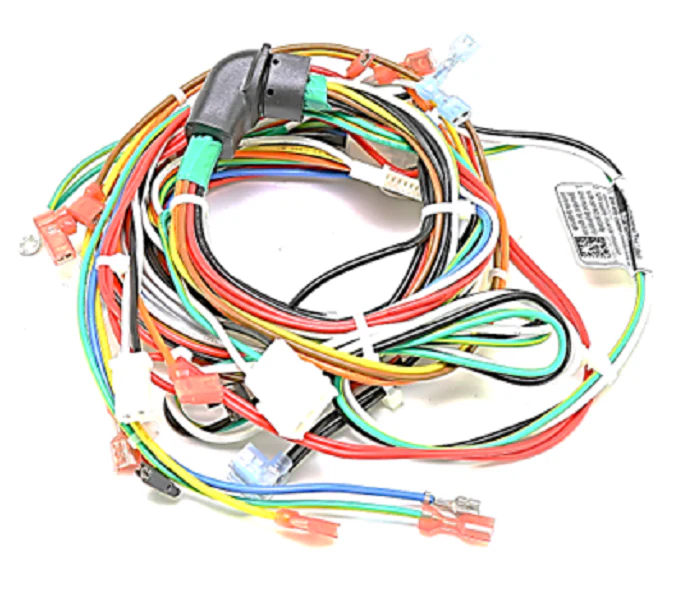

The Heil Quaker ICP 1186064 Harness Assembly is a critical OEM replacement part designed for high-efficiency gas furnaces and air handlers. This main wire harness serves as the central electrical nervous system for your HVAC unit, connecting the primary integrated furnace control (IFC) board to essential safety components and actuators. Engineered for precision compatibility, it replaces older part numbers 1184506 and 1184952, ensuring seamless integration with models from Heil, Tempstar, Arcoaire, Comfortmaker, and KeepRite. When troubleshooting HVAC electrical shorts or intermittent signal loss, replacing the entire furnace wiring harness is often more reliable than attempting point-to-point repairs on compromised insulation. This assembly utilizes copper conductors for superior conductivity and includes the necessary molex connectors and spade terminals for a secure, plug-and-play installation. Proper grounding is required for the ignition controls to operate correctly, and technicians should always verify 120V supply polarity during the installation of this ICP 1186064 harness.
Key Benefits- Precise OEM Compatibility: Specifically designed to fit a wide range of ICP brands, including Heil, Comfortmaker, and Tempstar, reducing the risk of wiring errors.
- Centralized Connectivity: Restores reliable communication between the control board, limit switches, flame sensors, and blower motors.
- Durable Construction: Features high-grade insulation and robust connectors to withstand the high-temperature environment of a furnace cabinet.
- Efficient Diagnostics: Replaces brittle or corroded wiring in older units, eliminating 24V low-voltage shorts that lead to frequent fuse failures.
Does this harness replace specific older ICP part numbers?
Yes, the 1186064 is a direct superseding part for previous numbers 1184506 and 1184952.
What symptom indicates a need for a new harness assembly?
If your unit is continuously blowing the 3A or 5A fuse on the control board, or if you detect 0 ohms of resistance when testing the 24V circuit to ground, the harness may have a short.
Are the connectors pre-installed on this assembly?
Yes, this is a complete assembly with all necessary multi-pin plugs and terminals factory-crimped for secure electrical contact.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $63.92
-65%$63.92
$22.37Heil Quaker ICP 1186064 Harness Assembly
The Heil Quaker ICP 1186064 Harness Assembly is a critical OEM replacement part designed for high-efficiency gas furnaces and air handlers. This main wire harness serves as the central electrical nervous system for your HVAC unit, connecting the primary integrated furnace control (IFC) board to essential safety components and actuators. Engineered for precision compatibility, it replaces older part numbers 1184506 and 1184952, ensuring seamless integration with models from Heil, Tempstar, Arcoaire, Comfortmaker, and KeepRite. When troubleshooting HVAC electrical shorts or intermittent signal loss, replacing the entire furnace wiring harness is often more reliable than attempting point-to-point repairs on compromised insulation. This assembly utilizes copper conductors for superior conductivity and includes the necessary molex connectors and spade terminals for a secure, plug-and-play installation. Proper grounding is required for the ignition controls to operate correctly, and technicians should always verify 120V supply polarity during the installation of this ICP 1186064 harness.
Key Benefits- Precise OEM Compatibility: Specifically designed to fit a wide range of ICP brands, including Heil, Comfortmaker, and Tempstar, reducing the risk of wiring errors.
- Centralized Connectivity: Restores reliable communication between the control board, limit switches, flame sensors, and blower motors.
- Durable Construction: Features high-grade insulation and robust connectors to withstand the high-temperature environment of a furnace cabinet.
- Efficient Diagnostics: Replaces brittle or corroded wiring in older units, eliminating 24V low-voltage shorts that lead to frequent fuse failures.
Does this harness replace specific older ICP part numbers?
Yes, the 1186064 is a direct superseding part for previous numbers 1184506 and 1184952.
What symptom indicates a need for a new harness assembly?
If your unit is continuously blowing the 3A or 5A fuse on the control board, or if you detect 0 ohms of resistance when testing the 24V circuit to ground, the harness may have a short.
Are the connectors pre-installed on this assembly?
Yes, this is a complete assembly with all necessary multi-pin plugs and terminals factory-crimped for secure electrical contact.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
