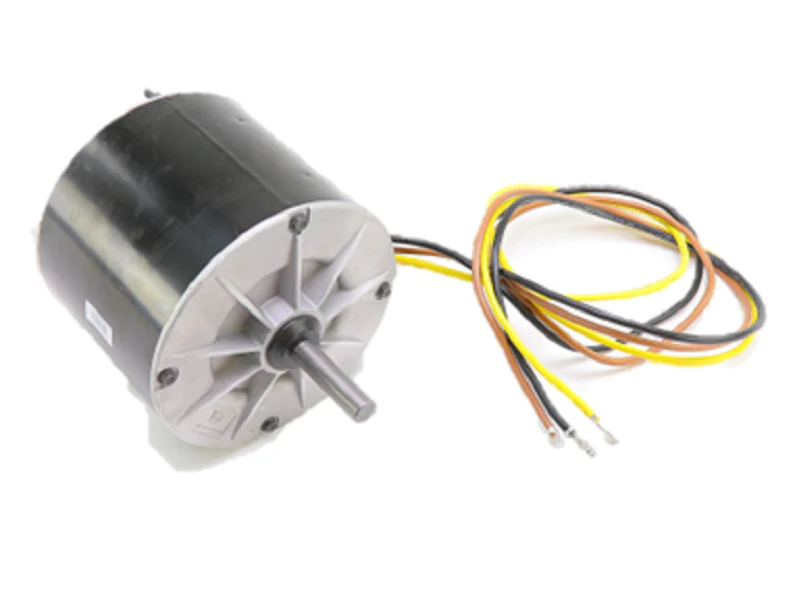

Heil Quaker ICP 1185924 Motor
The Heil Quaker ICP 1185924 Motor is a high-performance 1/4 HP condenser fan motor designed for direct OEM replacement in Heil, Quaker, and International Comfort Products (ICP) residential condensing units. Operating at 208-230V and a nominal 1100 RPM, this single-phase motor is specifically engineered to maintain the head pressure and heat dissipation requirements of original system designs. As a Permanent Split Capacitor (PSC) motor, it ensures dependable starting torque and consistent efficiency across various ambient temperatures. The 48-frame construction and standard service factor allow for straightforward installation on existing brackets without the need for field modifications or generic adapters that can compromise vertical alignment.
For technicians in the field, this condenser motor is vital for restoring 2400 CFM airflow in 3-ton systems that rely on 1100 RPM specifications to prevent compressor overheating and thermal overload trips. The motor utilizes high-grade bearings and a rugged housing to handle the rigors of the outdoor environment. Always verify the run capacitor rating before energizing, as a mismatched capacitor can shorten the lifecycle of the winding insulation.
Key Benefits- Direct OEM Compatibility: Verified fit for ICP units like N4A336AKB100, ensuring proper wire color matches and mounting bolt alignments.
- Optimized Heat Dissipation: Maintains 1100 RPM to sustain the necessary static pressure for effective refrigerant cooling in the condenser coil.
- Industrial Build Quality: 48-frame design meets NEMA standards for durability in high-cycle residential cooling applications.
- Energy Efficient PSC Design: Permanent Split Capacitor configuration provides a balanced power factor for stable electrical performance.
Can I use a 1075 RPM universal motor instead of this 1100 RPM motor?
While universal 1075 RPM motors are common, utilizing the exact 1100 RPM specification of the ICP 1185924 ensures the system maintains its engineered CFM and static pressure profile. Dropping speed can lead to higher head pressures and reduced compressor longevity.
What capacitor is required for the 1185924 condenser motor?
This motor typically requires a specific microfarad (MFD) run capacitor as indicated on the nameplate. It is standard trade practice to replace the capacitor during any motor swap to ensure the start winding receives the correct phase shift.
What are the signs that my condenser motor is failing?
Common indicators include a humming sound without fan rotation, the motor housing being hot to the touch (internal overload trip), or visible oil leakage from the bearings. If the fan blade can be spun easily by hand but doesn't start under power, the capacitor or the internal motor windings are likely compromised.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
