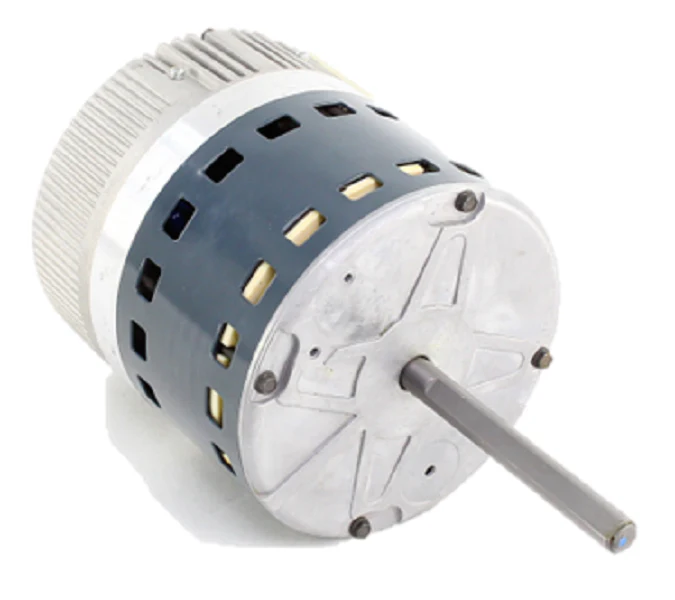

Heil Quaker ICP 1185920 Motor
The Heil Quaker ICP 1185920 Motor is a high-efficiency 1/2 HP replacement blower motor designed specifically for International Comfort Products (ICP) equipment, including Heil, Tempstar, and Comfortmaker units. This 240V single-phase ECM motor features Genteq EON variable speed technology, providing constant airflow and torque regulation to maintain system static pressure. Operating at a rated 1240 RPM, it serves as a direct-drive solution for residential air handlers and furnaces. The 1185920 variable speed motor is backward compatible with older ECM 2.3 models, featuring a NEMA 48-frame design and a 16-pin control interface for seamless integration with OEM harnesses. Built with a fully potted control board, this OEM ICP blower motor offers enhanced resistance to moisture and contaminants, ensuring stable performance in demanding HVAC environments while reducing overall energy consumption compared to standard PSC alternatives.
- Precise Airflow Control: Integrated Genteq EON electronics automatically adjust motor speed to compensate for duct static pressure, ensuring consistent CFM delivery.
- Drop-in Compatibility: Designed as an OEM replacement for ICP 1185920, featuring the standard 5 5/8-inch diameter and 1/2-inch shaft for quick mounting in existing blower housings.
- Variable Speed Efficiency: Reduces electrical overhead by matching output to thermal demand, extending the life of the secondary heat exchanger and evaporator coil.
- Robust Construction: Features a single-piece potted control module and ball-bearing design for quiet, continuous-duty operation in both heating and cooling cycles.
Is the 1185920 motor compatible with older ECM 2.3 systems?
Yes, the EON platform used in the ICP 1185920 is specifically engineered to be backward compatible with original ECM 2.3 motors, allowing for a straightforward upgrade without modifying the mechanical footprint or wiring.
Do I need to program this motor before installation?
This is an OEM programmed motor designed for specific ICP equipment parameters. It typically arrives with the necessary performance curves pre-loaded for the corresponding furnace or air handler models.
Can I replace just the control module instead of the entire motor?
While the 16-pin EON module can be separated from the motor belly, it is often recommended to replace the entire 1185920 assembly to ensure the internal windings and bearings match the new control logic for optimal reliability.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
