Heil Quaker ICP 1185847 Module

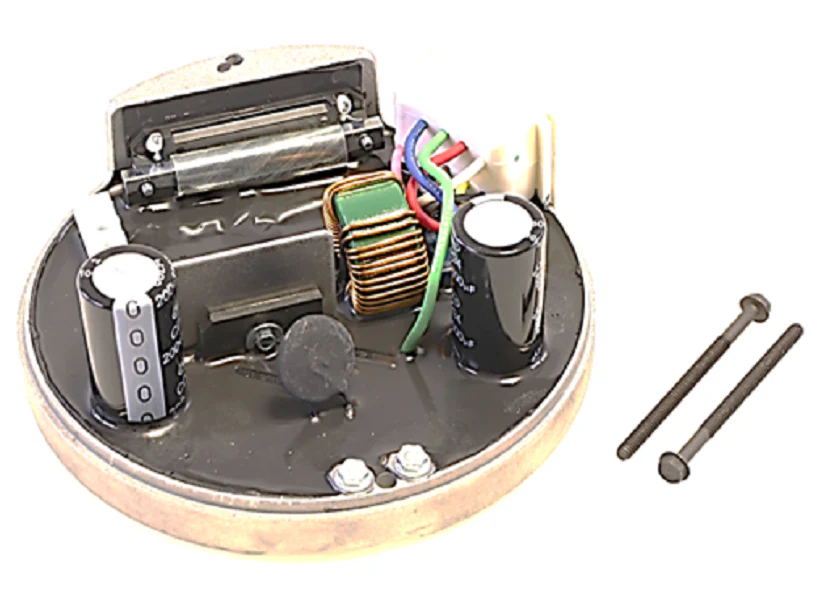

The Heil Quaker ICP 1185847 X-13 Motor Module is a critical OEM replacement part designed for 3/4 HP ECM motors in high-efficiency furnaces and air handlers. For contractors troubleshooting a dead blower, this Genteq motor controller allows you to restore system airflow without replacing the entire 5.6-inch NEMA 48 frame motor assembly. As a constant torque motor module, it translates 24VAC signals from the control board into specific RPM outputs across its five pre-programmed speed taps, ensuring precise CFM delivery across International Comfort Products brands like Tempstar, Comfortmaker, and Arcoaire.
Built for 208-230V applications, the ICP 1185847 uses advanced power electronics to protect the blower motor from electrical anomalies. When the motor "rocks" but fails to start, or if you measure 24V at the speed taps but find no rotation, replacing this "end cap" module is the industry-standard fix. Ensure the blower wheel is balanced and the 16-pin or 5-pin harness is secure to prevent future failure of the ECM motor control logic.
Key Benefits
- Direct OEM Match: Specifically programmed for 3/4 HP X-13 applications, eliminating the need for field programming or complicated wiring.
- Cost-Efficient Troubleshooting: Allows for the replacement of the control electronics while preserving the existing mechanical motor windings.
- Multi-Tap Versatility: Features 5 speed taps for customized heating, cooling, and continuous fan speeds based on original factory specifications.
- High Durability: Engineered by Genteq to withstand the high-temperature environment of an HVAC blower housing.
Common Questions
Can I use this 1185847 module on a 1/2 HP motor?
No, this module is specifically programmed for the torque requirements of a 3/4 HP motor. Using it on a different horsepower rating will result in incorrect airflow and potential motor overheating.
Do I need to program the module after installation?
This is a pre-programmed OEM X-13 module. Once installed on the motor back-plate and connected to the harness, it is ready to operate according to the original system parameters.
How do I know if only the module is bad and not the motor?
Verify there is line voltage and 24V at the taps. If the motor fails to turn but the blower wheel spins freely and motor windings show continuity (typically under 20 ohms), then the motor controller module has likely failed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
