Heil Quaker ICP 1185842 Control

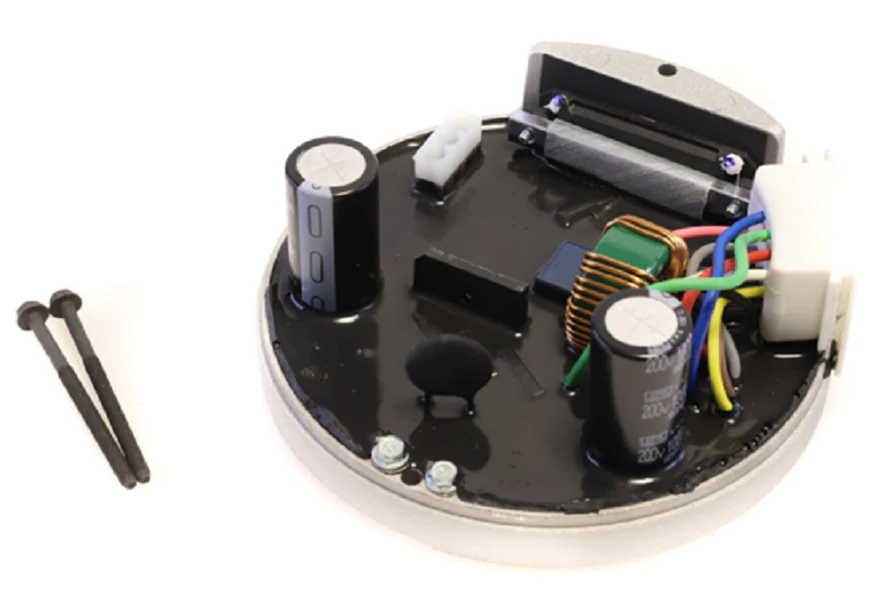

The Heil Quaker ICP 1185842 Control is a genuine OEM ECM X13 Motor Control Module designed specifically for 1/2 HP constant torque blower motors. As a veteran technician, you know that X13 "end caps" are the primary failure point in high-efficiency systems due to voltage spikes or poor power quality. This replacement motor control module allows for a targeted repair without pulling the entire motor assembly, preserving the factory-programmed torque taps essential for maintaining designed static pressure. Engineered for 208-240V single-phase applications, the ICP 1185842 motor controller handles 4.10 Amps and is pre-configured to interface with the 5-pin low-voltage signal from the furnace control board. It is a direct fit for brands under the International Comfort Products umbrella, including Heil, Tempstar, Comfortmaker, and KeepRite. When diagnosing, always verify that the 24VAC signal is reaching the programmed tap before condemning the module. Replacing this 1/2 HP X13 module restores precise airflow across the heat exchanger, preventing limit trips and evaporator freeze-ups caused by inadequate CFM. Key Benefits for Contractors
- Direct OEM Match: Eliminates the need for field programming or universal "one-size-fits-all" modules that can compromise airflow.
- Cost-Effective Repair: Replaces only the ECM X13 motor control, saving the customer the expense of a complete motor swap.
- Durable Construction: Built to handle the high-torque demands of modern HVAC air handlers and furnaces.
- Improved Efficiency: Optimized for constant torque performance to meet SEER requirements and maintain consistent duct velocity.
Can I use this module on a different horsepower motor?
No. This specific module is factory-calibrated for 1/2 HP motors. Installing it on a 1/3 HP or 3/4 HP motor will result in incorrect torque curves and potential motor failure.
Does this module require a specific installation orientation?
It is best practice to install the motor with the control module connectors facing downward (between the 4 and 8 o’clock positions) to create a drip loop and prevent moisture from entering the electronics.
What is the most common cause of failure for the 1185842?
Most modules fail due to transient voltage spikes or high external static pressure. We recommend installing an inline surge protector to safeguard the sensitive ECM motor module components.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $551.25
-65%$551.25
