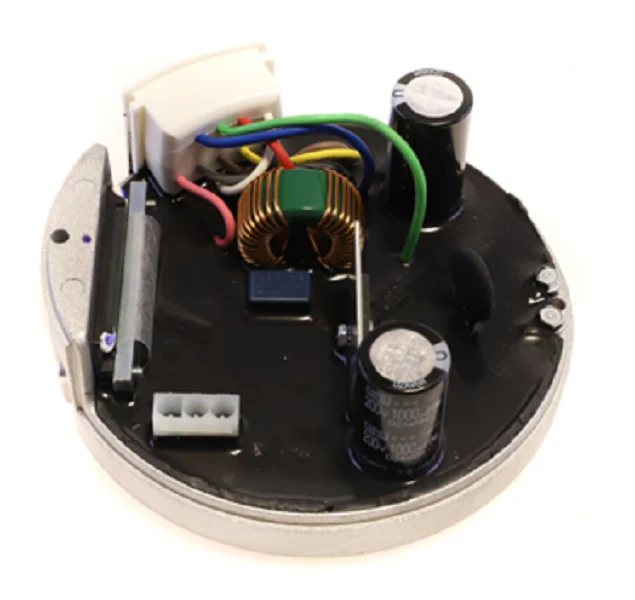

Heil Quaker ICP 1185293 Control
The Heil Quaker ICP 1185293 is a direct replacement ECM X-13 motor control module designed specifically for 3/4 HP constant torque motors. Engineered for ICP (International Comfort Products) air handlers and furnaces, this programmed motor controller regulates airflow by maintaining constant torque against varying static pressures. As a critical component in high-efficiency HVAC systems, it manages the power stages of the brushless DC motor, ensuring precise RPM adjustments for optimal heat transfer. When diagnosing a failed blower motor, replacing the control module is often a cost-effective alternative to a full motor swap, provided the windings pass a continuity test. This Heil Quaker blower control utilizes pulse width modulation to achieve high SEER ratings and quiet operation across multiple speed taps. Ensure the system power is disconnected and capacitors are discharged before swapping the 16-pin and 4-pin harnesses to prevent control board short-circuiting.
Key Benefits
- OEM Compatibility: Designed for seamless integration with ICP, Heil, Quaker, and Tempstar 3/4 HP X-13 motor frames.
- Variable Speed Efficiency: Maintains constant torque to improve humidity control and reduce energy consumption.
- Simplified Installation: Features standard plug-and-play connections for the power and signal harnesses.
- Durable Construction: Potting compound protects internal circuitry against vibrations and moisture within the evaporator cabinet.
Common Questions
How do I know if the X-13 control module is bad versus the motor itself?
Use an ECM motor tester or check for line voltage at the power plug and 24V signals at the communication harness. If the motor turns freely by hand and has proper resistance across the windings but fails to start with a thermostat call, the 1185293 control is likely faulty.
Is this module pre-programmed for my specific tonnage?
Yes, this ICP 1185293 is programmed with the necessary pulse parameters for 3/4 HP applications, ensuring the blower meets the required CFM for the heat exchanger or coil size.
Can I use this to replace a PSC motor control?
No, this is specifically for ECM X-13 brushless motors. It cannot be used to control standard permanent split capacitor motors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $359.16
-65%$359.16
$125.71Heil Quaker ICP 1185293 Control
