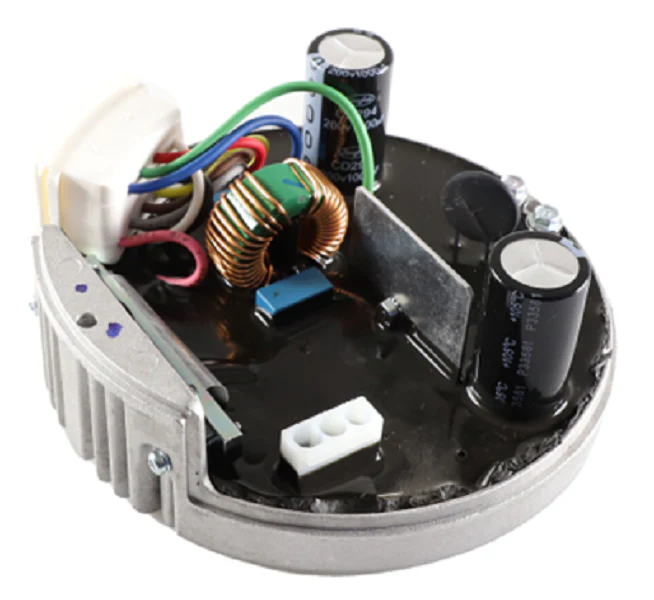

Heil Quaker ICP 1185292 Control
The Heil Quaker ICP 1185292 Control is a critical OEM replacement motor control module designed specifically for 3/4HP ECM X-13 constant torque motors. As a seasoned technician knows, these Genteq motor controllers are programmed with manufacturer-specific airflows for International Comfort Products (ICP) equipment, including Heil, Tempstar, and Comfortmaker fan coils and furnaces. Operating on 208-230V single-phase power, this module manages discrete speed taps (1-5) to maintain precise torque output, ensuring proper static pressure and CFM delivery throughout the cooling and heating cycles. When diagnosing a failed blower, if the motor winding resistance is within the sub-20 ohm range and phase-to-phase balance is maintained, replacing the ICP 1185292 control end cap is the preferred industry solution to restore high-efficiency HVAC blower functionality without the need for a total motor teardown.
Key Benefits- Direct OEM Compatibility: Specifically programmed for Heil Quaker and ICP X-13 units, ensuring factory-spec airflow and sequence of operation.
- Simplified Diagnostics: Allows for isolated testing of the ECM control module separate from the motor windings, speeding up troubleshooting in the field.
- Constant Torque Performance: Utilizes X-13 technology to automatically adjust power to maintain airflow across varying static pressures.
- Precision Speed Taps: Features five low-voltage (24VAC) communication terminals for tailored fan speed and electric heat airflow configurations.
How do I verify if the ICP 1185292 control has failed?
Verify 230V line voltage at the L and N terminals and a 24VAC signal at the programmed speed tap. If line and control voltages are present but the motor shaft does not turn, and the motor windings show equal resistance (under 20 ohms), the motor control module is likely at fault.
Can I swap this module between different ICP models?
While the ICP 1185292 fits many FXM4X4800 series air handlers, these are factory-programmed for specific equipment profiles. Using an incorrectly programmed module may lead to improper CFM, causing evaporator coil freezing or limit switch tripping.
Do I need specialized tools for installation?
Standard hand tools are sufficient for the mechanical swap. However, check for arching or burn marks on the internal power thermistor within the old module, and always ensure a drip loop is formed in the harness to prevent moisture intrusion.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
