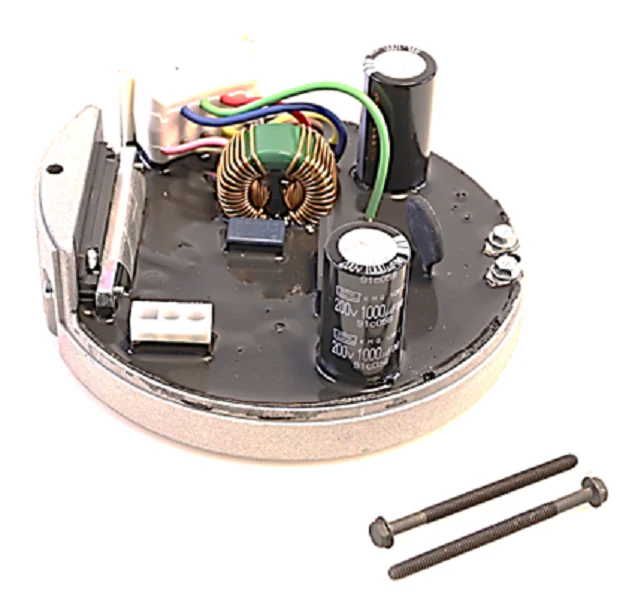

Heil Quaker ICP 1185289 Control
The Heil Quaker ICP 1185289 Control is a critical OEM replacement ECM X-13 motor control module designed specifically for 1/2 HP blower motors in high-efficiency residential HVAC systems. This ICP blower motor module serves as the intelligent interface between the furnace or air handler control board and the permanent magnet motor, providing precise pulse-width modulation to manage torque and airflow across various static pressures. Engineered for 208-240V configurations, the 1185289 motor control replaces failing electronic modules on X13 Genteq motors, allowing technicians to restore system functionality without replacing the entire motor assembly. By utilizing ECM technology, this control optimizes HVAC airflow regulation, directly impacting SEER2/HSPF2 ratings and humidity control. For contractors, installing this OEM Heil Quaker part ensures factory-spec communication protocols are maintained, preventing the common "hunting" or sequencing issues often found with universal alternatives.
Key Benefits
- Direct OEM Replacement: Drop-in compatibility for 1185289, Ge Genteq, and Tempstar 1/2 HP modules.
- Enhanced Motor Efficiency: Leverages ECM X-13 programming to maintain constant torque and reduce energy consumption.
- Cost-Effective Repair: Allows for independent replacement of the power module instead of the entire blower motor.
- Operational Reliability: Built with robust thermal protection to withstand common voltage fluctuations and high-heat furnace cabinet environments.
Common Questions
Can I replace just the module if my X13 motor is clicking?
Yes, often the 1185289 control module fails due to a damaged thermistor or capacitor while the motor windings remain intact. Removing the two 5/16" bolts on the motor bell allows for a quick swap.
Is this 1185289 control programmed for a specific CFM?
Yes, this is an OEM programmed motor module designed for specific ICP/Heil equipment sequences, ensuring the correct ramp-up speeds and airflow for the 1/2 HP rating.
How do I verify if the module is bad versus the motor?
Technicians should check for line voltage at the 5-pin connector and verify 24V signals at the low-voltage taps. If the motor has smooth bearings but fails to turn with confirmed power and signal, the module is likely the culprit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
