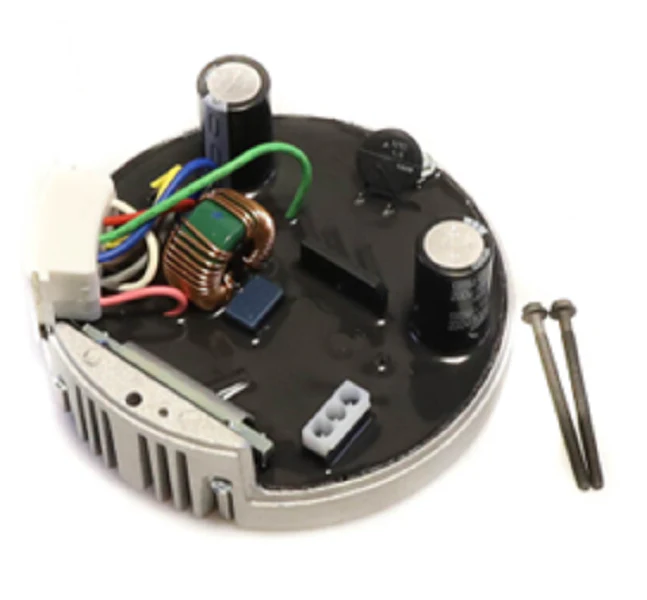

Heil Quaker ICP 1185286 Control
As an HVAC technician, you know that a failed indoor blower can shut down an entire system; the Heil Quaker ICP 1185286 Control is the direct OEM replacement engineered to restore precise 1/2 HP X-13 motor functionality. This ECM motor control module (also referenced as the ICP 1185286 motor control) is critical for managing the variable-speed performance of fan coils and furnaces in International Comfort Products equipment. Unlike generic alternatives, this genuine HVAC replacement part ensures the correct 24VAC communication and high-voltage power distribution required for constant torque operation. It effectively regulates airflow to meet real-time demand, optimizing energy efficiency and preventing the common limit switch trips associated with blower failure. When troubleshooting, verify your 5-pin connector and 16-pin harness integrity, as this blower motor control board is the central hub for signal processing. This module is built for the rugged demands of residential and light commercial fan coil units, offering a drop-in fit for FXM4X series air handlers.
Key Benefits for the Contractor:- OEM Compatibility: Precision-engineered for a drop-in fit with ICP 1185286 specifications, eliminating field modification.
- Optimized Performance: Specifically programmed for 1/2 HP X-13 motors to maintain factory-calibrated airflow and static pressure.
- System Reliability: Restores crucial communication between the thermostat, control board, and blower motor to prevent system-wide faults.
- Energy Efficiency: Leverages advanced ECM technology to reduce power consumption while providing quieter soft-start capabilities.
Will this control board work with a standard PSC motor?
No, this module is specifically designed for ECM (Electronically Commutated Motor) technology, specifically the X-13 constant torque 1/2 HP series. It is not compatible with permanent split capacitor (PSC) motors.
What are the signs that my current 1185286 control has failed?
Technicians typically look for a fan that won't turn on despite a "G" call from the thermostat, a humming noise from the motor without rotation, or the furnace shutting down on a high-limit fault because the blower isn't moving enough air.
Can I replace just the module or do I need the whole motor?
The ICP 1185286 is the control module itself. If your motor's internal windings ohm out correctly and the shaft spins freely, replacing just this module is often the most cost-effective solution for a control-side failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $431.88
-65%$431.88
$151.16Heil Quaker ICP 1185286 Control
As an HVAC technician, you know that a failed indoor blower can shut down an entire system; the Heil Quaker ICP 1185286 Control is the direct OEM replacement engineered to restore precise 1/2 HP X-13 motor functionality. This ECM motor control module (also referenced as the ICP 1185286 motor control) is critical for managing the variable-speed performance of fan coils and furnaces in International Comfort Products equipment. Unlike generic alternatives, this genuine HVAC replacement part ensures the correct 24VAC communication and high-voltage power distribution required for constant torque operation. It effectively regulates airflow to meet real-time demand, optimizing energy efficiency and preventing the common limit switch trips associated with blower failure. When troubleshooting, verify your 5-pin connector and 16-pin harness integrity, as this blower motor control board is the central hub for signal processing. This module is built for the rugged demands of residential and light commercial fan coil units, offering a drop-in fit for FXM4X series air handlers.
Key Benefits for the Contractor:- OEM Compatibility: Precision-engineered for a drop-in fit with ICP 1185286 specifications, eliminating field modification.
- Optimized Performance: Specifically programmed for 1/2 HP X-13 motors to maintain factory-calibrated airflow and static pressure.
- System Reliability: Restores crucial communication between the thermostat, control board, and blower motor to prevent system-wide faults.
- Energy Efficiency: Leverages advanced ECM technology to reduce power consumption while providing quieter soft-start capabilities.
Will this control board work with a standard PSC motor?
No, this module is specifically designed for ECM (Electronically Commutated Motor) technology, specifically the X-13 constant torque 1/2 HP series. It is not compatible with permanent split capacitor (PSC) motors.
What are the signs that my current 1185286 control has failed?
Technicians typically look for a fan that won't turn on despite a "G" call from the thermostat, a humming noise from the motor without rotation, or the furnace shutting down on a high-limit fault because the blower isn't moving enough air.
Can I replace just the module or do I need the whole motor?
The ICP 1185286 is the control module itself. If your motor's internal windings ohm out correctly and the shaft spins freely, replacing just this module is often the most cost-effective solution for a control-side failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
