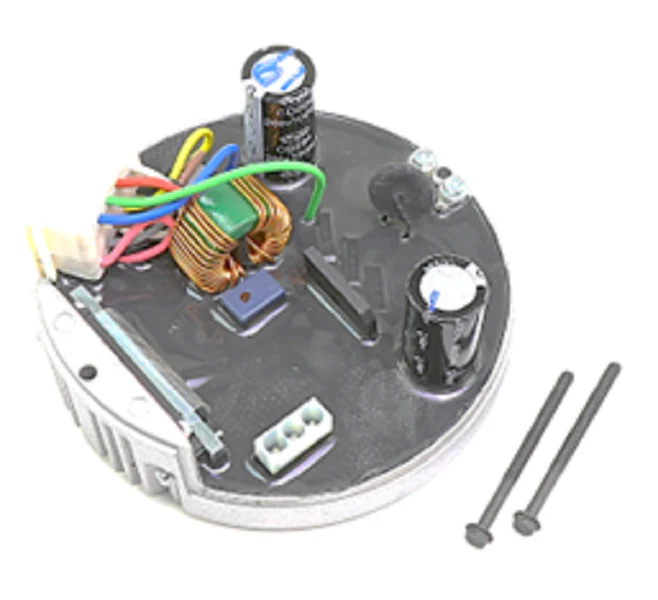

Heil Quaker ICP 1185283 Control
The Heil Quaker ICP 1185283 Control is an OEM ECM X-13 motor control module designed specifically for 1/2 HP constant torque blower motors. As a veteran technician knows, ECM motor failure often originates in the control end-cap rather than the motor windings themselves. This Genteq 1185283 replacement allows you to restore blower functionality in ICP air handlers and furnaces without the expense of a full motor swap. Operating on a 208-240V single-phase circuit at 50/60 Hz, this 1/2 HP blower motor module provides the precise torque adjustment required for high-efficiency airflow. It features the standard 5-pin speed tap configuration for 24VAC signal communication. When installing, always verify that the blower wheel rotates freely and check for stable line voltage. To prevent premature X-13 module failure caused by electrical spikes, ensure all grounds are secure and consider an inline surge protector for sensitive electronics.
Key Benefits:- OEM Compatibility: Direct replacement for Heil Quaker, Tempstar, Comfortmaker, and Arcoaire systems using part number 1185283.
- Cost-Effective Repair: Replaces the failed electronic end-cap on 1/2 HP ECM motors, avoiding the need for a complete mechanical motor replacement.
- Precision Performance: Pre-programmed to maintain constant torque across multiple speed taps for optimized static pressure management.
- Simplified Installation: Standard Genteq X-13 housing with included mounting hardware for a rapid "unbolt and swap" procedure in the field.
- Can I use this module on a 115V system? No, the 1185283 control is specifically rated for 208-240V applications. Installing it on 115V will cause the motor to fail to start or operate erratically.
- How do I know if the module or the motor is bad? Perform a "Go-No-Go" test. If the motor windings ohm out correctly (typically under 20 ohms and balanced) and the shaft spins freely, the ECM control module is the likely culprit.
- Does this require programming in the field? This is an OEM programmed part designed to match the specific airflow profiles of ICP equipment; no additional field programming is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
