Heil Quaker ICP 1184783 Control Board

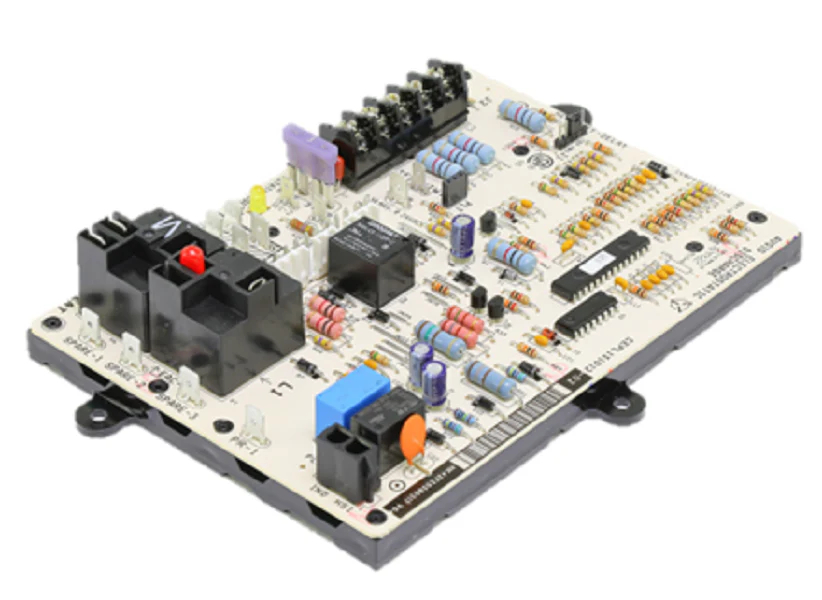

The Heil Quaker ICP 1184783 Control Board serves as a direct-fit OEM integrated furnace control (IFC) for specific Heil, Tempstar, Comfortmaker, and ICP gas furnaces. This circuit board manages critical sequence operations, including the inducer motor, hot surface ignition (HSI), and blower timing, ensuring precise combustion cycles and safety monitoring. As a veteran-preferred replacement, the 1184783 furnace control is designed to address common failure points such as intermittent ignition issues or faulty relay switching. It features a technical design that supports integrated furnace control troubleshooting by providing diagnostic LED indicators for faster fault detection in the field. When performing a Heil furnace control board replacement, this unit offers seamless compatibility with existing wiring harnesses, maintaining the original equipment’s logic for flame sensing and limit switch monitoring. For contractors, the ICP 1184783 circuit board provides a reliable solution to restore system operation without the need for extensive field modifications or secondary mounting kits.
Key Benefits for Technicians:- OEM Compatibility: Precision-engineered for exact fitment in ICP-manufactured units, eliminating the need for universal mounting adjustments.
- Diagnostic Feedback: Integrated LED flash codes assist in rapid furnace circuit board troubleshooting, reducing diagnostic time on-site.
- Robust Relay Logic: Specifically tested to handle the inductive loads of blowers and inducer motors for long-term switching reliability.
- Plug-and-Play Integration: Utilizes standard pin configurations and terminal labels found in Heil Quaker hvac parts catalogs for straightforward installation.
What are the signs of a failing 1184783 control board? Failure often manifests as a "no heat" call where the inducer runs but the HSI fails to glow, or the blower motor runs continuously due to a stuck relay on the board.
Does this board require a separate ignition module? No, this is an integrated control board that manages both the ignition sequence and the blower timing functions in a single component.
Are the wiring terminals labeled for field installation? Yes, the Heil furnace parts layout on this board uses industry-standard terminal designations (W, Y, G, R, C) to ensure accurate low-voltage connections.
