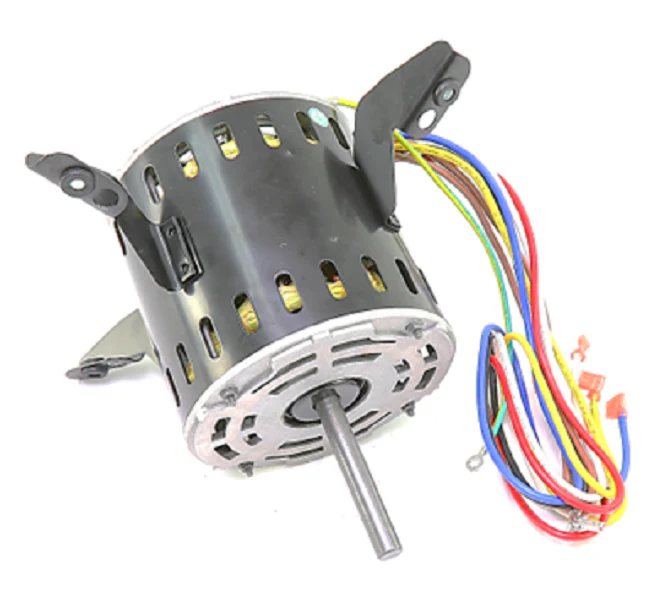

Heil Quaker ICP 1184660 Motor
The Heil Quaker ICP 1184660 Motor is a high-performance OEM blower motor designed for critical applications in HVAC residential furnaces and air handlers. Operating on 115V with a robust 1/2 HP output, this 4-speed motor (1075 RPM) provides the versatility needed to tune airflow for heating and cooling stages precisely. Built on a NEMA 48 frame, it features a 1/2-inch shaft diameter with a 3-1/4 inch length, ensuring compatibility with standard blower wheels and assemblies. This unit, manufactured by Broad-Ocean as model Y7L623E013, is the direct replacement blower motor for various ICP brands including Heil, Tempstar, and Comfortmaker.
For technicians in the field, this PSC motor requires a 15MFD 370V capacitor for proper operation. It is thermally protected and designed for continuous air over cooling, maintaining stable performance in high-static environments. When retrofitting or replacing an existing ICP 1184660, professionals should verify lead end rotation (CCWLE) and ensure the blower wheel is balanced to prevent premature bearing wear caused by vibration.
Key Benefits- Broad Compatibility: Direct OEM replacement for Heil Quaker, Tempstar, and Comfortmaker blower assemblies.
- Multi-Speed Flexibility: Features 4-speed taps (1075 RPM) to optimize CFM across different climate zones and furnace models.
- Industry Standard Frame: Utilizes a 48 frame motor housing, facilitating straightforward installation in most standard furnace blower housings.
- Enhanced Reliability: Thermally protected windings and Class B insulation prevent overheating during high-demand cycles.
What capacitor is required for the ICP 1184660 blower motor?
This 1/2 HP furnace motor requires a 15 uF 370V run capacitor. Using an incorrectly rated capacitor can lead to motor failure or reduced efficiency.
Can this motor replace other 1/2 HP 115V blower motors?
While technically possible if the specs match, this is a specific ICP OEM part. Always verify the shaft length, frame size, and rotation (CCWLE) before attempting a cross-reference swap.
What should I check if the motor is drawing high amperage?
Technicians should inspect for air restriction in the ductwork or a dirty evaporator coil. High static pressure often forces multi-speed motors to work outside their designed torque curve.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
