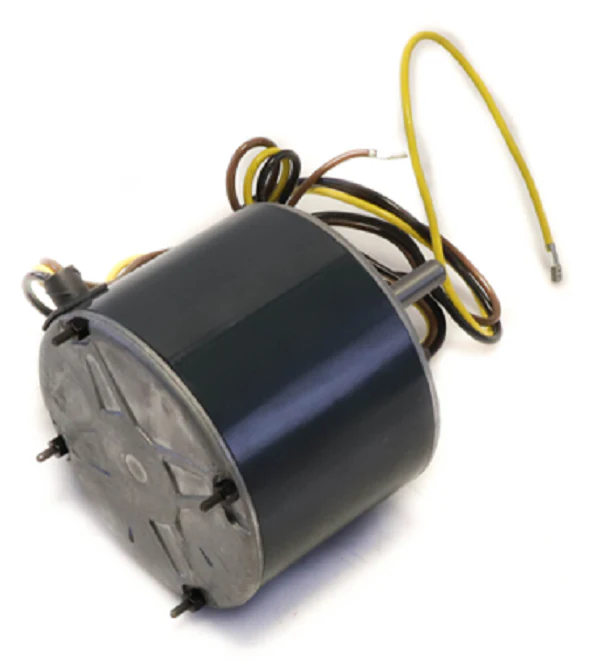

Heil Quaker ICP 1184598 Motor
When you're replacing a condenser fan motor in an ICP or Heil system, the ICP 1184598 motor is the specifically engineered OEM solution for high-static heat dissipation. This is a 1/5 HP 810 RPM motor designed for 208-230V single-phase operation, commonly integrated into CSA6 and HSA6 series heat pumps and air conditioners. It features a NEMA 48 frame and runs at 1.20 amps, requiring a 5 MFD / 370 VAC capacitor for proper startup and torque. Professional installation requires verifying the clockwise rotation lead end (CWLE) to ensure correct airflow through the coil. Unlike universal alternatives, this direct drive motor maintains the specific RPM profile needed to prevent compressor overheating and head pressure spikes. For a complete repair, technicians always inspect the fan blade for balance issues and bench-test the existing run capacitor, as these are the primary culprits for the winding failure often seen in a genuine ICP 1184598 motor replacement scenario.
Key Benefits for Contractors
- Perfect ICP Compatibility: Eliminates mounting headaches and wiring guesswork in Heil, Comfortmaker, and Tempstar condenser units.
- Optimized 810 RPM Performance: Ensures the precise CFM required by the manufacturer to maintain design efficiency.
- Thermal Protection: Includes an internal thermal overload switch to protect the windings during high-ambient operating conditions.
- Rugged 48 Frame Construction: Standard 1/2" diameter by 2 5/8" length shaft fits existing fan hubs perfectly without modification.
Common Questions about the ICP 1184598
What capacitor is required for the 1184598 motor?
This motor requires a 5 MFD at 370V run capacitor. It is essential to replace the capacitor when installing a new motor to prevent premature failure from out-of-tolerance electrical components.
What is the rotation for the ICP 1184598 fan motor?
The rotation is Clockwise Lead End (CWLE). Always verify the orientation of your existing fan blades before securing the hub to the 1/2-inch flat shaft.
Can I use this motor on a 115V circuit?
No. This is a 208-230V motor. Applying 115V will cause the motor to hum, draw excessive current, and eventually trip the internal thermal overload without reaching operational speed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
