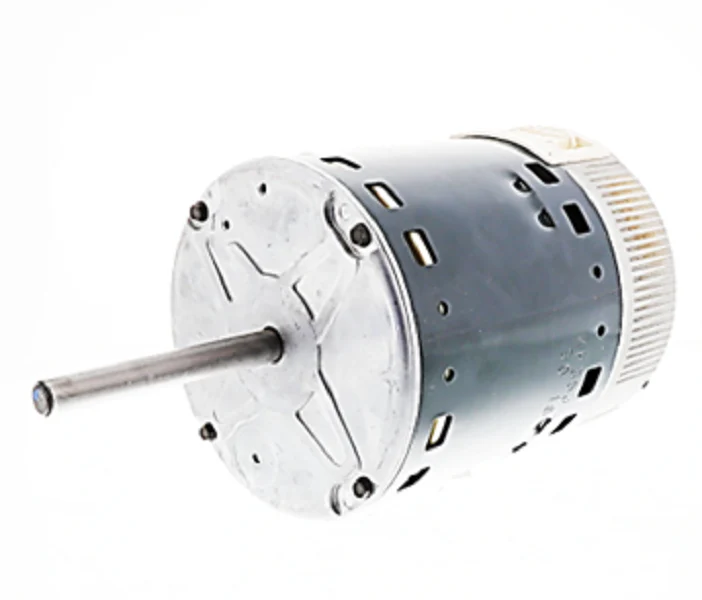

Heil Quaker ICP 1184564 Motor
The Heil Quaker ICP 1184564 Motor is a heavy-duty 3/4 HP blower motor designed for high-static pressure applications in residential and light commercial HVAC systems. This OEM direct replacement motor is engineered for ICP furnace blowers, ensuring precise physical dimensions and electrical compatibility without the need for mounting modifications. Operating at 115V, this permanent split capacitor (PSC) motor features an open-air over (OAO) design to optimize thermal management during continuous operation. Technicians often source this multi-speed blower motor when addressing failed HVAC fan motors or intermittent airflow issues caused by bearing wear or winding failure. The ICP 1184564 aftermarket equivalent provides the necessary torque to maintain CFM requirements across varying ductwork configurations. Installing this high-efficiency HVAC blower motor helps restore system performance and protects heat exchangers from overheating due to restricted airflow.
Technical Specifications & Key Benefits
- Direct OEM Fit: Drop-in replacement for ICP, Heil, and Quaker air handlers, eliminating field-fabrication for brackets.
- 3/4 Horsepower Rating: Provides robust static pressure capability for 3 to 4-ton cooling systems.
- Multi-Speed Lead Configuration: Flexible wiring options for precise airflow tuning across heating and cooling cycles.
- Rugged Internal Bearings: Designed for high-duty cycles to minimize vibratory noise and mechanical fatigue.
- Enhanced Thermal Protection: Internal overload protection prevents motor burnout during restricted airflow events.
Common Questions
What are the wiring lead colors for the ICP 1184564 motor?
This motor typically utilizes industry-standard lead colors, but technicians should always verify the schematic on the motor nameplate for speed tap identification (Common, High, Medium, Low).
Can I use a different capacitor rating with this 3/4 HP motor?
No. To ensure proper starting torque and prevent winding damage, always install the specific MFD/uF capacitor rating listed on the new motor's technical data plate.
Is this the correct replacement blower motor for my Heil furnace?
Check your existing motor for the 1184564 part number. This motor is the standard 3/4 HP replacement for many ICP-built furnace and modular blower models.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
