Heil Quaker ICP 1183599 Circuit Board

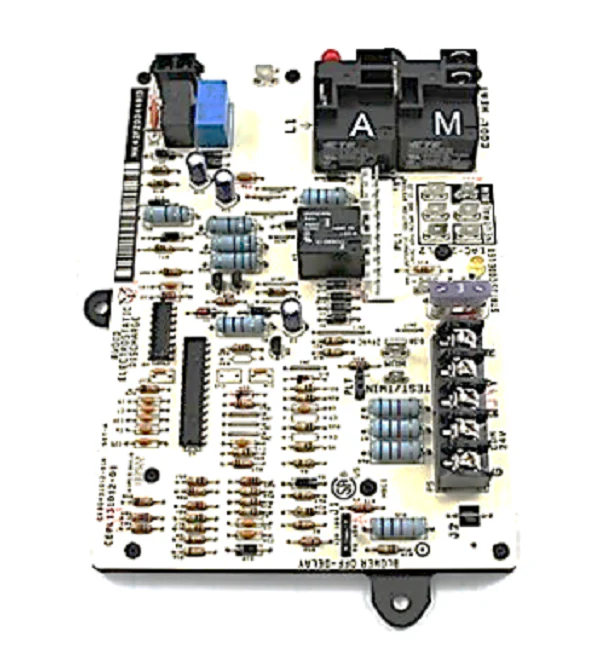

The Heil Quaker ICP 1183599 Circuit Board is a critical OEM replacement part designed for high-performance furnace control across several International Comfort Products brands, including Tempstar, Arcoaire, Comfortmaker, and KeepRite. Engineered to handle a 24 VAC input at 60Hz, this integrated furnace control manages the ignition sequence, blower motor timing, and safety circuit monitoring. Technical specifications confirm it replaces legacy part number 1176943 and operates with a nominal current draw of 465 milliamps. For technicians troubleshooting Heil furnace error codes or intermittent heating cycles, this board provides the necessary logic to interface with gas valves and inducer motors within 80% AFUE and 90%+ condensing units. Its 7" x 5" footprint ensures a direct fit in the electrical vestibule of compatible WFML and WFMR models, maintaining the precise millivolt flame sensing required for stable burner operation. Utilizing a genuine ICP 1183599 control board ensures that the system’s logic remains calibrated to original factory parameters, preventing common issues like short cycling or stuck blower relays that often plague aftermarket alternatives.
Key Benefits:
- Direct OEM Compatibility: Specifically engineered for ICP furnace models like the R8MSL and WFML series, ensuring seamless plug-and-play installation.
- Advanced Logic Control: Regulates the blower motor delay-on and delay-off settings to maximize heat exchanger efficiency and airflow comfort.
- Enhanced Diagnostics: Features an on-board LED indicator that provides real-time troubleshooting codes for faster field diagnostics.
- Precision Safety Monitoring: Continuously verifies limit switch continuity and flame sensor microamps to maintain safe combustion.
Common Questions:
What are the symptoms of a failing 1183599 circuit board?
Common signs include the furnace blower running constantly, ignition failure despite a glowing igniter, or irregular LED flash patterns that don't match the diagnostic chart. Often, a burnt relay or cracked solder joint is the culprit.
Does this board require specific wiring modifications during installation?
Since this is an official Heil Quaker replacement, the terminal designations typically match existing harnesses. However, always verify your model number, as some legacy 1176943 conversions may require checking the low-voltage transformer output.
Can I use this board for 2-stage heating systems?
The 1183599 is primarily utilized in single-stage gas furnaces. It is essential to confirm your wiring diagram and control module part number to ensure compatibility with high-efficiency multi-stage equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $333.04
-65%$333.04
$116.56Heil Quaker ICP 1183599 Circuit Board
The Heil Quaker ICP 1183599 Circuit Board is a critical OEM replacement part designed for high-performance furnace control across several International Comfort Products brands, including Tempstar, Arcoaire, Comfortmaker, and KeepRite. Engineered to handle a 24 VAC input at 60Hz, this integrated furnace control manages the ignition sequence, blower motor timing, and safety circuit monitoring. Technical specifications confirm it replaces legacy part number 1176943 and operates with a nominal current draw of 465 milliamps. For technicians troubleshooting Heil furnace error codes or intermittent heating cycles, this board provides the necessary logic to interface with gas valves and inducer motors within 80% AFUE and 90%+ condensing units. Its 7" x 5" footprint ensures a direct fit in the electrical vestibule of compatible WFML and WFMR models, maintaining the precise millivolt flame sensing required for stable burner operation. Utilizing a genuine ICP 1183599 control board ensures that the system’s logic remains calibrated to original factory parameters, preventing common issues like short cycling or stuck blower relays that often plague aftermarket alternatives.
Key Benefits:
- Direct OEM Compatibility: Specifically engineered for ICP furnace models like the R8MSL and WFML series, ensuring seamless plug-and-play installation.
- Advanced Logic Control: Regulates the blower motor delay-on and delay-off settings to maximize heat exchanger efficiency and airflow comfort.
- Enhanced Diagnostics: Features an on-board LED indicator that provides real-time troubleshooting codes for faster field diagnostics.
- Precision Safety Monitoring: Continuously verifies limit switch continuity and flame sensor microamps to maintain safe combustion.
Common Questions:
What are the symptoms of a failing 1183599 circuit board?
Common signs include the furnace blower running constantly, ignition failure despite a glowing igniter, or irregular LED flash patterns that don't match the diagnostic chart. Often, a burnt relay or cracked solder joint is the culprit.
Does this board require specific wiring modifications during installation?
Since this is an official Heil Quaker replacement, the terminal designations typically match existing harnesses. However, always verify your model number, as some legacy 1176943 conversions may require checking the low-voltage transformer output.
Can I use this board for 2-stage heating systems?
The 1183599 is primarily utilized in single-stage gas furnaces. It is essential to confirm your wiring diagram and control module part number to ensure compatibility with high-efficiency multi-stage equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
