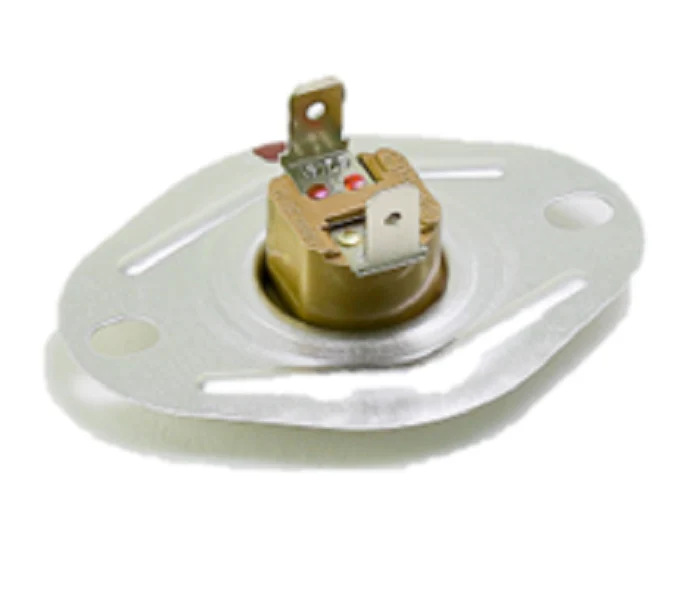

Heil Quaker ICP 1183524 Limit Switch
The Heil Quaker ICP 1183524 Limit Switch is a critical safety component designed for precise thermal regulation in residential furnaces and forced-air systems. As a genuine ICP OEM replacement part, this normally closed switch is engineered to open the electrical circuit when temperatures reach a 160°F threshold, effectively preventing heat exchanger damage and hazardous operating conditions. The ICP 1183524 features an automatic reset function that restores the circuit once temperatures drop to 120°F, ensuring consistent system cycling without manual intervention. This disc-style limit switch is built for broad compatibility across International Comfort Products brands, including Tempstar, Heil, and Comfortmaker. For service calls involving intermittent blower operation or high-limit trips, replacing aged components with this factory-authorized furnace limit switch ensures the unit maintains its original safety specifications and airflow logic. It replaces obsolete numbers and cross-references with HH16HA508A and L160F-40, providing a drop-in solution for 80% and 90% AFUE furnace models.
Key Benefits:- Precise Calibrated Threshold: Fixed 160°F cutout protects the heat exchanger from thermal stress and premature failure.
- OEM Reliability: Genuine Heil Quaker ICP 1183524 construction ensures the mounting footprint and terminal placement match factory specifications.
- Automatic Reset Logic: Resets at 120°F to resume normal heating operations after the plenum has cooled to safe levels.
- Universal Cross-Compatibility: Validated for use in Heil, Tempstar, Arcoaire, and Day & Night equipment.
- What causes a 160F limit switch to trip repeatedly? Frequent tripping is often caused by restricted airflow, such as a clogged furnace filter, undersized ductwork, or a failing blower motor.
- Is this switch compatible with my specific ICP model? The 1183524 fits a wide range of models, including the F8MVL, G8MXL, and N80ESN series; always verify the temperature rating on the existing switch before installation.
- Can I use a higher temperature limit switch as a substitute? No, technical specifications require using the exact 160F rating to ensure the safety parameters of the furnace remain intact.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
