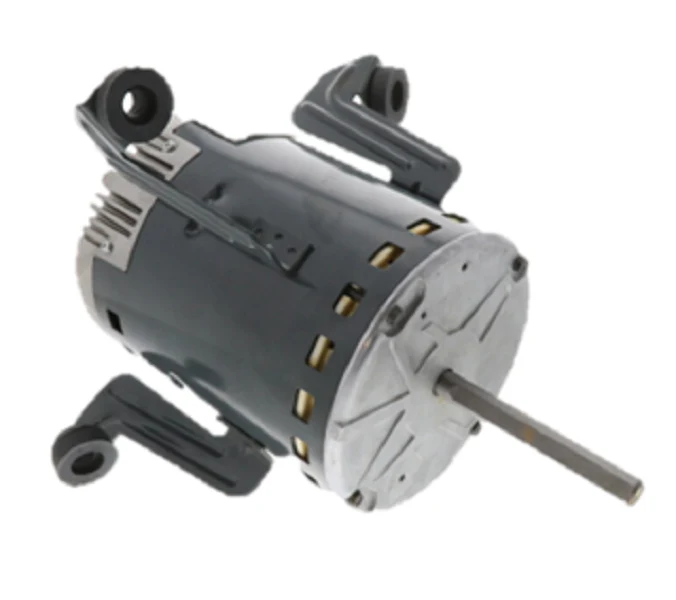

Heil Quaker ICP 1183520 Motor
The Heil Quaker ICP 1183520 Motor is a high-efficiency variable speed blower motor designed for precise airflow control in compatible ICP furnaces and air handlers. Operating at 115V with a maximum speed of 1200RPM, this single-phase HVAC motor serves as a direct OEM replacement for failing blower units. Its ECM-style design allows the system to modulate output, reducing static pressure issues and improving overall HVAC system efficiency. For technicians, the ICP 1183520 ensures a drop-in fit, maintaining the original equipment manufacturer's electrical specifications and mounting footprint. This Heil blower motor is critical for maintaining consistent CFM levels across varying ductwork conditions, preventing evaporator coil freeze-ups and heat exchanger overheating. When replacing this 115V variable speed motor, verify the control module and harness connections to ensure seamless communication with the furnace control board.
Key Benefits:
- ECM Variable Speed Technology: Provides superior airflow modulation for better humidity control and quieter operation compared to PSC motors.
- OEM Compatibility: Specifically engineered for Heil, Quaker, and International Comfort Products (ICP) equipment to ensure exact electrical ratings.
- 115V Single Phase: Standard voltage configuration for residential forced-air systems for streamlined installation.
- 1200RPM Capacity: Capable of handling high-static applications while maintaining energy-efficient performance.
Common Questions:
Is this a drop-in replacement for motors with different RPM ratings?
No, this motor is a 1200RPM rated unit. Always match the voltage and RPM specs exactly to the original data plate to avoid board failure or airflow imbalances.
Does this motor include the control module?
This part number typically includes the integrated module; however, verify that the 115V 1P configuration matches your existing wiring before energizing the system.
Can I use this 115V motor in a 230V system?
Absolutely not. Connecting a 115V variable speed motor to 230V power will cause immediate failure of the internal electronics.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
