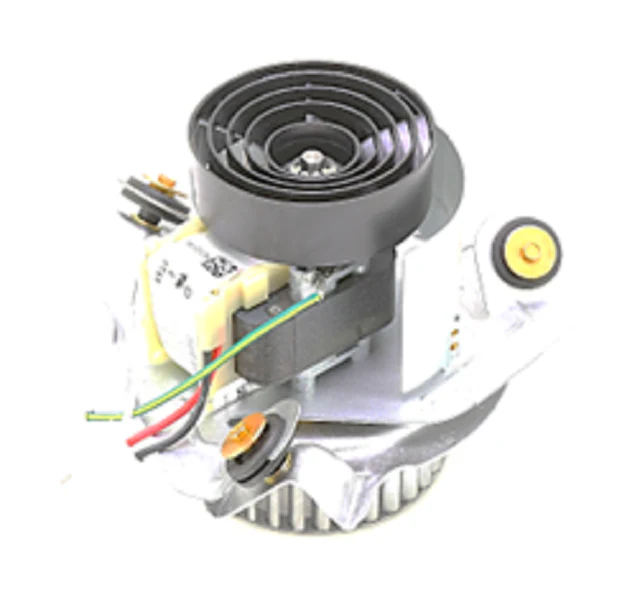

Heil Quaker ICP 1183501 Motor Assembly
Replace your failing draft inducer with the genuine Heil Quaker ICP 1183501 Motor Assembly, a critical OEM component engineered for high-static pressure applications in residential gas furnaces. This 115V single-phase inducer motor is designed to pull combustion air through the heat exchanger and safely exhaust flue gases, preventing pressure switch lockout and ensuring proper ignition sequences. Operating at dual speeds of 3000/2000 RPM, this 60Hz assembly provides the precise furnace draft inducer performance required for high-efficiency ICP, Tempstar, and KeepRite models. As a complete furnace vent motor kit, it facilitates a direct-fit installation, maintaining original equipment specifications for airflow and thermal safety. For technicians servicing Heil furnace replacement parts, this assembly eliminates the compatibility risks associated with universal motors, ensuring the ICP draft inducer assembly integrates seamlessly with existing wire harnesses and mounting brackets to restore reliable system operation during peak heating demands.
Key Benefits for HVAC Contractors
- Optimized Pressure Regulation: Engineered to meet specific airflow requirements, preventing furnace pressure switch errors and intermittent cycling.
- Direct OEM Compatibility: Built for ICP 1183501 specifications, ensuring mounting holes and electrical connectors align perfectly with models like F8MVL and G8MVL.
- Quiet Operation: Precision-balanced blower wheel reduces vibration and resonance through the cabinet and ductwork.
- Thermal Protection: Internal safeguards protect the motor windings from overheating during continuous duty cycles.
- High-Efficiency Performance: Dual-speed 3000 RPM inducer motor capability supports staged heating demands for lower energy consumption and precise venting.
Common Questions & Technical Support
Will this motor fix my "Open Pressure Switch" fault code?
An open pressure switch is often caused by a failing draft inducer assembly that cannot reach the required RPM or has a restricted housing. If your motor is humming, seized, or running slowly, this assembly is the intended solution.
Is this a direct replacement for the 1183501 part number?
Yes, this is a genuine ICP replacement motor. It is the direct successor to legacy 1183501 units and is designed to provide the same 115V, 60Hz performance profile required by the control board.
Does this kit include the mounting gasket?
Technicians should always inspect the housing gasket during teardown. While this is the primary motor and blower assembly, we recommend verifying if your specific furnace serial number requires a separate high-temp silicone gasket for an airtight seal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
