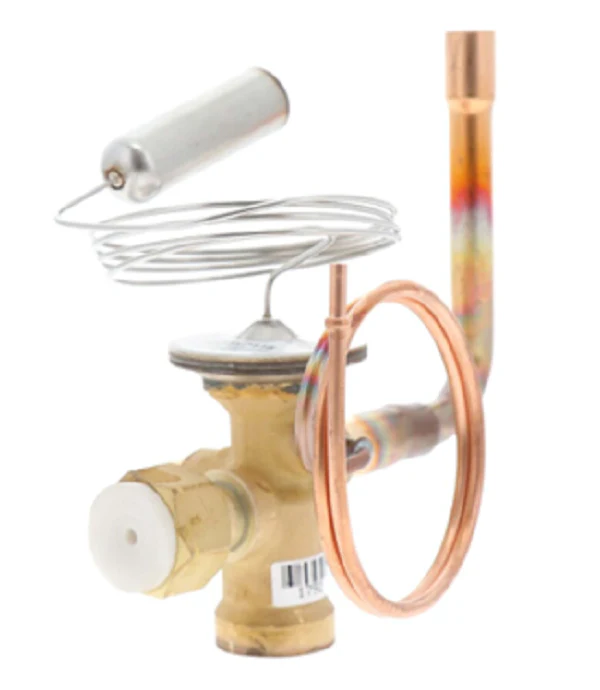

Heil Quaker ICP 1183302 TXV
The Heil Quaker ICP 1183302 TXV is a precision-engineered 6.0 Ton R-410A thermal expansion valve designed to optimize refrigerant flow and maintain precise superheat across variable load conditions. As a direct OEM replacement TXV for high-capacity International Comfort Products (ICP) systems, this balanced port expansion valve ensures maximum evaporator efficiency in 6-ton residential and light commercial air conditioning applications. Engineered specifically for R-410A refrigerant systems, the 1183302 features a robust stainless steel power element and high-grade internal components to resist corrosion and prevent premature diaphragm fatigue. Professionals prioritizing HVAC system performance will find this valve essential for maintaining stable suction pressures and protecting compressors from liquid slugging. Whether performing a 6-ton evaporator coil repair or a full system overhaul, utilizing this factory-authorized part guarantees mechanical compatibility with Heil, Quaker, Comfortmaker, and Tempstar equipment, reducing troubleshooting time and ensuring the TXV superheat adjustment remains within manufacturer specifications.
Key Benefits for the Technician- Precise Refrigerant Metering: Maintains optimal superheat levels to maximize heat transfer efficiency in 72,000 BTU systems.
- OEM Compatibility: Exact fit for Heil Quaker and ICP air handlers and cased coils, eliminating the need for field modifications.
- R-410A Optimized: Specifically calibrated for high-pressure Puron / R-410A environments to prevent hunting and erratic cooling.
- Enhanced Compressor Protection: Prevents refrigerant floodback, significantly extending the service life of the 6-ton compressor.
- Durable Construction: Built with heavy-duty materials to withstand thermal cycling and high vibration in demanding HVACR environments.
What are the signs of a failing 6-ton TXV in an ICP unit?
Common indicators include high suction superheat, low suction pressure, or frost buildup on the evaporator coil while the compressor is running. A restricted valve will starve the evaporator, while a stuck-open valve can lead to liquid slugging at the compressor.
Is the ICP 1183302 a bolt-on or sweat-in replacement?
The 1183302 typically utilizes standard mechanical or braze connections depending on the specific coil header configuration. Technicians should always use a wet rag or heat blocking gel on the valve body during installation to protect internal seals from heat damage.
Can this TXV be used on R-22 systems?
No, this valve is specifically calibrated for the pressure-temperature characteristics of R-410A. Using it with R-22 will result in improper metering and potential system failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
