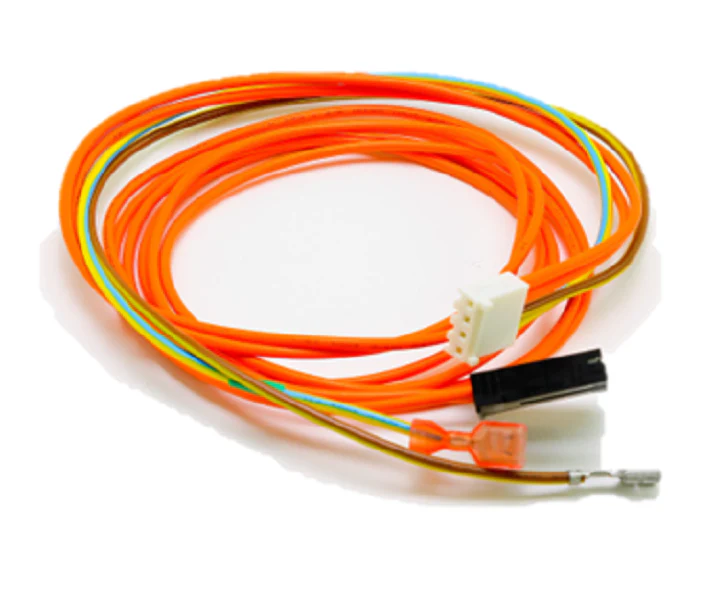

Heil Quaker ICP 1179387 Wiring Harness
As a seasoned technician, you know that a failed reversing valve signal often traces back to a compromised ICP 1179387 wiring harness rather than the valve body itself. This Heil Quaker reversing valve harness is a mission-critical 52-inch assembly designed for precise electrical delivery to the solenoid coil. In the field, environmental exposure and vibration frequently lead to brittle insulation or intermittent paths on the RVS plug, resulting in a heat pump stuck in one mode. This OEM replacement wiring harness ensures a polarized, secure fit for ICP heat pump reversing valves, providing the low-voltage signal needed to shift the internal slide via the pilot valve. When diagnosing a unit that won't switch between heating and cooling, replacing this reversing valve harness assembly eliminates terminal corrosion and wire fatigue as potential failure points. This 52-inch wiring harness is engineered to meet HVAC wire management standards, maintaining system integrity across high-demand residential and commercial applications.
Key Benefits- Precise 52-Inch Length: Provides ample slack for clean routing away from high-temperature discharge lines and vibrating components.
- Polarized RVS Plug: Ensures foolproof connection to the reversing valve solenoid, preventing phased-related operation issues.
- Durable Insulation: Engineered to withstand the thermal stressors found within the outdoor condenser section.
- Direct OEM Compatibility: Specifically designed for Heil and Quaker units to maintain factory signal specifications for the 24V circuit.
Can I use this harness to troubleshoot a stuck reversing valve?
Yes. Before condemning the valve, use this harness to ensure a consistent 24V signal is reaching the solenoid coil. If the coil energizes but the valve fails to shift, you may have a mechanical blockage or insufficient pressure differential.
Does this harness include the solenoid coil?
No, this is the 1179387 wiring harness assembly only. If your solenoid coil has an open circuit or is physically damaged, it must be sourced separately.
Will this fit all ICP heat pump models?
This harness is the standard 52-inch assembly for many Heil and Quaker heat pumps. Always verify your specific model number to ensure the connector and length match your unit's internal wire management path.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
