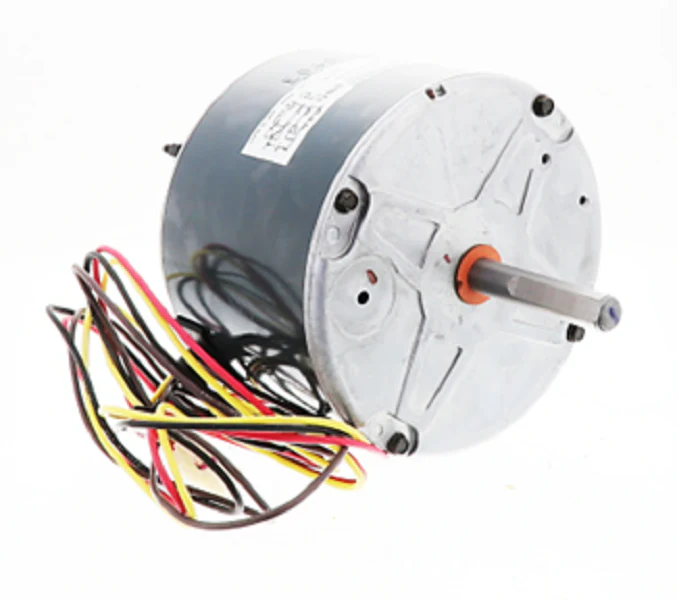

Heil Quaker ICP 1179379 Motor
The Heil Quaker ICP 1179379 Motor is a heavy-duty 1/12 HP condenser fan motor engineered for precision performance in residential and light commercial HVAC units. Operating at 208-230Vac, this 820 RPM 2-speed motor features a 48 NEMA frame size, making it a reliable drop-in replacement for specific ICP, Heil, and Tempstar condenser applications. Built with ball bearings for increased longevity and thermal efficiency, this permanent split capacitor (PSC) motor handles high-static environments without premature failure. The thru-bolt mount and CW rotation ensure a secure installation and optimal airflow across the condenser coils. Since this is a 0.45 Amp single-phase motor, it maintains a low electrical load while providing consistent torque. Technicians should verify 10mf/370V capacitor requirements and lead lengths before installation to ensure seamless integration with the existing fan blade pitch and shroud configuration.
Key Technical Benefits:- Dual-Speed Versatility: The 820 RPM 2-speed configuration allows for precise airflow modulation to meet specific cooling demands.
- Enhanced Durability: Equipped with ball bearings to withstand high ambient temperatures and reduce mechanical friction within the 48 frame motor.
- Direct OEM Compatibility: Designed as a direct ICP 1179379 replacement, ensuring thru-bolt mount alignment and CW rotation accuracy.
- High Efficiency: The PSC motor design and low 0.45 Amp draw optimize energy consumption during peak summer operating cycles.
What is the correct replacement capacitor for the ICP 1179379?
Most 1/12 HP Heil Quaker motors require a 5 MFD or 10 MFD 370V capacitor; always check the ratings on the original motor nameplate to prevent winding burnout.
Can this motor be used in a CCW application?
No, this specific model is a CW rotation motor. Reversing the rotation on a non-reversible PSC motor can lead to electrical failure and insufficient refrigerant cooling.
Will this motor fit any 48-frame condenser bracket?
While it uses a standard 48 NEMA frame size, the thru-bolt mount pattern is specific to Heil Quaker and ICP-manufactured equipment. Verify the bolt circle dimensions before mounting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $351.69
-65%$351.69
$123.09Heil Quaker ICP 1179379 Motor
The Heil Quaker ICP 1179379 Motor is a heavy-duty 1/12 HP condenser fan motor engineered for precision performance in residential and light commercial HVAC units. Operating at 208-230Vac, this 820 RPM 2-speed motor features a 48 NEMA frame size, making it a reliable drop-in replacement for specific ICP, Heil, and Tempstar condenser applications. Built with ball bearings for increased longevity and thermal efficiency, this permanent split capacitor (PSC) motor handles high-static environments without premature failure. The thru-bolt mount and CW rotation ensure a secure installation and optimal airflow across the condenser coils. Since this is a 0.45 Amp single-phase motor, it maintains a low electrical load while providing consistent torque. Technicians should verify 10mf/370V capacitor requirements and lead lengths before installation to ensure seamless integration with the existing fan blade pitch and shroud configuration.
Key Technical Benefits:- Dual-Speed Versatility: The 820 RPM 2-speed configuration allows for precise airflow modulation to meet specific cooling demands.
- Enhanced Durability: Equipped with ball bearings to withstand high ambient temperatures and reduce mechanical friction within the 48 frame motor.
- Direct OEM Compatibility: Designed as a direct ICP 1179379 replacement, ensuring thru-bolt mount alignment and CW rotation accuracy.
- High Efficiency: The PSC motor design and low 0.45 Amp draw optimize energy consumption during peak summer operating cycles.
What is the correct replacement capacitor for the ICP 1179379?
Most 1/12 HP Heil Quaker motors require a 5 MFD or 10 MFD 370V capacitor; always check the ratings on the original motor nameplate to prevent winding burnout.
Can this motor be used in a CCW application?
No, this specific model is a CW rotation motor. Reversing the rotation on a non-reversible PSC motor can lead to electrical failure and insufficient refrigerant cooling.
Will this motor fit any 48-frame condenser bracket?
While it uses a standard 48 NEMA frame size, the thru-bolt mount pattern is specific to Heil Quaker and ICP-manufactured equipment. Verify the bolt circle dimensions before mounting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
