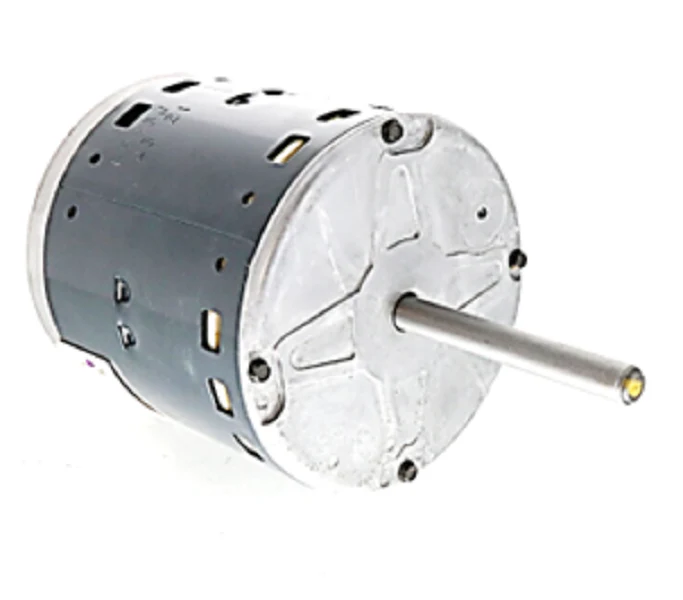

Heil Quaker ICP 1178981 Motor
Ensure your system maintains peak efficiency with the Heil Quaker ICP 1178981 Motor, a heavy-duty 1/2 HP blower motor engineered for precise airflow control. This direct drive blower motor is a high-performance X13 ECM replacement, designed to drop directly into 48 NEMA frame configurations without the need for complex field programming or additional wiring harnesses. Operating at 208-230Vac single-phase power, this variable-speed unit draws 4.1 Amps and features a 1/2" x 4" shaft for broad compatibility across International Comfort Products (ICP) air handlers and furnaces.
For technicians in the field, the ICP 1178981 blower motor provides a reliable solution for persistent static pressure challenges. Its ball-bearing construction and CCW rotation ensure smooth, long-term operation even in demanding residential or light commercial duct systems. Utilizing an OEM HVAC motor like the 1178981 preserves the unit’s original efficiency ratings and sound quality profiles, making it a preferred choice over generic alternatives that often require significant modification or lack the constant torque characteristics of a true variable speed furnace motor.
Key Benefits- Direct Drop-In Integration: Designed as a specific 1178981 replacement motor, allowing for plug-and-play installation into existing ICP, Heil, and Tempstar modules.
- Variable Speed Efficiency: Features X13 technology for optimized energy consumption and consistent CFM delivery across various static pressure levels.
- Rugged Build Quality: Equipped with dual ball bearings and a robust 48-frame metal housing to withstand high-duty cycles.
- Broad Application: Compatible with a wide range of Heil Quaker and other International Comfort Products (ICP) furnace and air handler brands.
Is this a direct replacement for my existing X13 motor?
Yes, the 1178981 is the OEM-specified ECM blower motor for various ICP models. It is vital to match the part number from your original motor's nameplate to ensure correct module programming.
Does this motor require a separate run capacitor?
No, as an ECM/X-13 style motor, the speed control logic is handled by the integrated end-cap module, and no external capacitor is required for operation.
What rotation does this motor support?
This specific model is designed for Counter-Clockwise (CCW) rotation. Always verify the rotation of your blower wheel before finalizing the installation to prevent airflow issues.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
