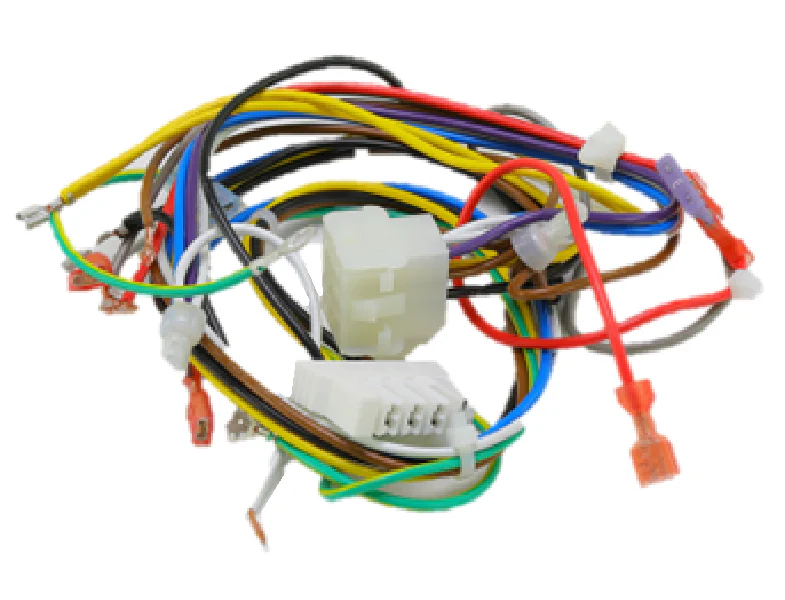

Heil Quaker ICP 1178976 Harness Assembly
The Heil Quaker ICP 1178976 Harness Assembly is a critical OEM replacement part engineered specifically for ECMX blower motor configurations. As a veteran technician knows, maintaining signal integrity between the integrated motor control and the furnace control board is essential for proper static pressure management and CFM delivery. This ICP blower wiring harness provides the high-performance electrical path required for Arcoaire, Heil, and Comfortmaker residential furnaces and air handlers. Designed for a direct drop-in fit, the 1178976 harness eliminates the risks associated with field-splicing or universal adapters, which can lead to communication errors or premature motor failure. By utilizing factory-spec connectors and wire gauges, this HVAC blower assembly harness ensures stable voltage across all pins, maintaining the precise modulation of ECM motors in high-efficiency systems. When diagnosing 16-pin or 5-pin ECM communication faults, replacing a brittle or corroded harness with this genuine component is the professional standard for ensuring long-term system reliability.
Key Benefits for the Contractor:
- Precise OEM Compatibility: Verified fit for ICP 1178976 applications, ensuring the wiring pinout matches the factory logic of the control board.
- Eliminates Communication Faults: Proper shielding and terminal seating prevent the intermittent "ghost" errors often found in aging ECMX blower motor circuits.
- Reduced Installation Lead Time: Plug-and-play architecture allows for rapid field replacement without the need for custom soldering or terminal crimping.
- Durable Insulation: High-grade jacketing resists thermal cycling and vibration within the blower cabinet for sustained performance.
Common Questions & Technical Support:
Will the 1178976 harness work with standard PSC motors?
No, this specific wiring harness is dedicated to ECMX blower digital motor modules. It utilizes specialized connectors that are not compatible with standard capacitor-start PSC motors.
Why should I choose an OEM harness over a universal wiring kit?
Universal kits often require pin-swapping or wire-tapping, which introduces points of failure. The ICP 1178976 ensures the impedance and terminal lock-strength meet the original engineering specifications for Heil and Arcoaire equipment.
When should this harness be replaced during a motor swap?
We recommend inspecting the internal terminals of the 1178976 harness for carbon tracking or arcing. If the connectors feel loose or show discoloration, the harness should be replaced to protect the new motor's electronics.
