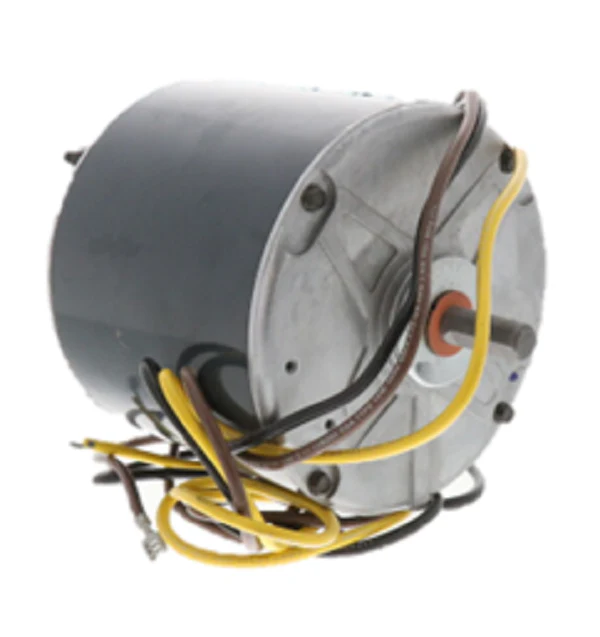

Heil Quaker ICP 1178686 Motor
The Heil Quaker ICP 1178686 Motor is a direct-drive 1/4 HP condenser fan motor designed for high-static pressure applications in residential and light commercial condensing units. Operating at 208-230V and a nominal 825 RPM, this single-phase PSC motor is engineered for continuous air-over duty. The 48 NEMA frame diameter ensures a standard fit, while the thru-bolt mounting configuration allows for secure installation in multiple orientations. Built with sleeve bearings for quiet operation and a 1.2 Amp draw, this motor provides the low-speed torque required to maintain optimal refrigerant head pressure. When replacing a failed outdoor motor, this OEM-equivalent component ensures the system matches the original fan pitch and CFM requirements, preventing compressor overheating or efficiency loss.
Heil Quaker ICP 1178686 Motor Technical Benefits
- High Torque 825 RPM Design: Specifically engineered for units requiring lower fan speeds to maximize heat transfer across the condenser coil.
- NEMA 48 Frame Compatibility: Standard 5.6-inch diameter ensures this ICP 1178686 replacement motor fits most Heil, Quaker, and Tempstar outdoor sections.
- Sleeve Bearing Construction: Offers reduced vibration and noise levels compared to ball bearing alternatives in vertical shaft-up applications.
- CW Rotation: Maintains the correct airflow direction (Clockwise) as specified for HVAC condenser fan motor replacement parts.
Common Installation Questions
What capacitor is required for the ICP 1178686?
This motor typically requires a 5 MFD / 370V run capacitor; always check the nameplate on the specific unit as capacitance requirements can vary by production run.
Can I use this to replace a 1075 RPM motor?
No, you must match the 825 RPM motor speed. Using a higher RPM motor will overload the circuit and fail to provide the correct dwell time for heat exchange.
Is this motor reversible?
The 1178686 is a fixed CW rotation motor and is not lead-reversible in the field.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
